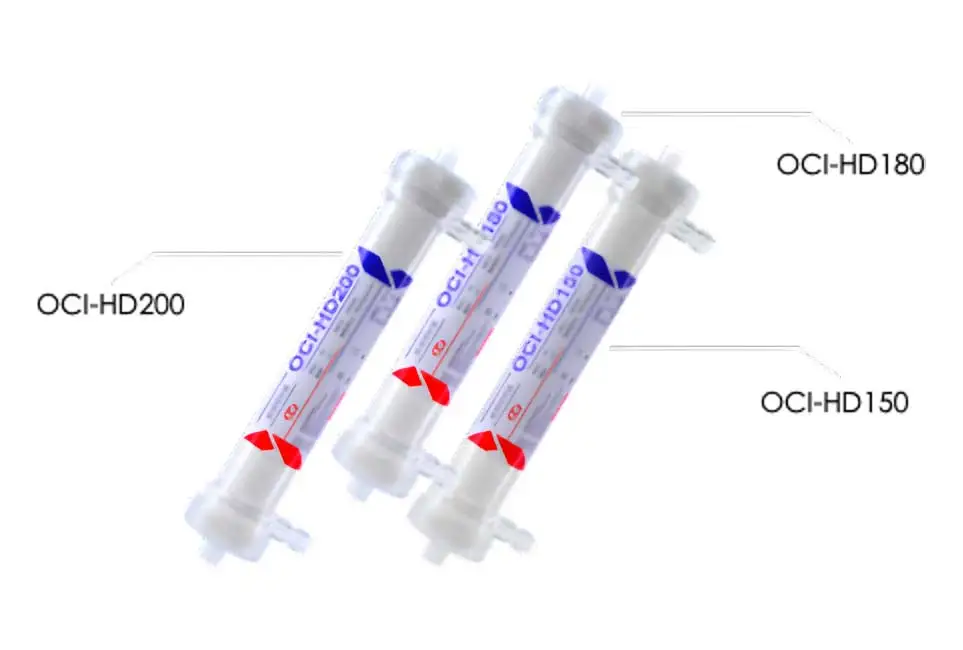

Dialyzer

The dialyzer is a pipe and container for solute exchange between blood and dialysate and is a key part of hemodialysis. As a professional dialyzer manufacturer, our dialyzer for sale is mainly composed of a supporting structure and a dialysis membrane. The latter is an important part of it. It is a semi-permeable membrane that only allows molecules smaller than the pore size of the membrane to pass. The membrane materials are modified cellulose membranes and synthetic membranes, both of which are it can be made into a high-throughput dialyzer.

Features of Dialyzer


  • Excellent small molecular protein toxin clearance, lay the foundation for high-flux dialysis

  • Adopt German imported polyethersulfone (PES) dialysis membrane, excellent biocompatibility

  • A new generation of dialyzers with the best diffusion clearance, high and low flux

  • A variety of effective membrane area (㎡), 1.2, 1.4, 1.6, 1.8, 2.0, to meet the needs of different patients

  • Class 10,000 clarification workshop to assemble and test

  • Optimized smooth face cap at booth end reduce the occurrence of residual blood coagulation

  • 3 layers asymmetrical spongy microporous

  • Outstanding biocompatibility and no bisphenol A dissolving

  • High temperature resistance that can have long time sterilization



Configuration of Dialyzer


Membrane material

PES

Shell

PC

Cap

PC

Sealing Ring

Silicone

Effective membrane area

2.1m2

Fibrous membranes inner diameter

200μm

Fibrous membranes wall thickness

40μm


Filterability

≥1000ml/min


Paritcle content after filtration

Contain particles larger than 10 μm per milliliter≤25

Contain particles larger or equal to 25μm per milliliter ≤3

Microbial content after filtration

Total number of bacteria is less than 1CFU/10ml

Endotoxin content after filtration

Bacteria endotoxin content is less than 0.03EU/ml

Maximum TMP

600mmHg

Lifespan

More than 900 hours or 160 treatments


Model & Specification

LoF10

LoF12

LoF14

LoF16

LoF18

LoF20

Membrane Material

Medical-grade Polyether Sulfone (PES)

Housing & Blood caps Material

Medical-grade Polycarbonate (PC)

Potting sealants Material

Bi-component polyurethane sealants (PU)

Inner diameter of membrane (μm)

200

Wall thickness of membrane (μm)

40

Max. operation pressure (KPa/mmHg)

66.5/500

Max.flow rate (ml/min)

Max. QB=500ml/min, Max. QD=500~800ml/min

Effective membrane area(m2)

1.0

1.2

1.4

1.6

1.8

2.0

UFR(ml/h*mmHg)

15

18

22

25

28

30

Blood compartment Volume(ml)

70

78

85

98

110

125

Sterilization

γ-rays


Model & Specification

HiF10

HiF12

HiF14

HiF16

HiF18

HiF20

Membrane Material

Medical-grade Polyether Sulfone (PES)

Housing & Blood caps Material

Medical-grade Polycarbonate (PC)

Potting sealants Material

Bi-component polyurethane sealants (PU)

Inner diameter of membrane (μm)

200

Wall thickness of membrane (μm)

40

Max. operation pressure (KPa/mmHg)

66.5/500

Max.flow rate (ml/min)

Max. QB=500ml/min, Max. QD=500~800ml/min

Effective membrane area(m2)

1.0

1.2

1.4

1.6

1.8

2.0

UFR(ml/h*mmHg)

40

45

50

55

60

65

Blood compartment Volume(ml)

70

78

85

98

110

125

Sterilization

γ-rays


Model & Specification

F12L

F14L

F16L

F18L

F20L

Effective membrane area (m2)

1.2

1.4

1.6

1.8

2.0

Blood flow (mL/min)

200

300

400

200

300

400

200

300

400

200

300

400

200

300

400

UFR (ml/h*mmHg)

12.0

12.4

12.5

13.2

13.5

14.0

13.5

14.0

14.5

18.0

18.5

19.0

21.0

23.0

25.0

Blood compartment Volume (ml)

74

90

96

100

109

Membrane material

Polyethersulfone (PES)

Housing & Blood caps material

Polycarbonate (PC)

Sealing glue material

Polyurethane

Inner diameter of membrane (μm)

200

Wall thickness of membrane (μm)

40

Max. operation pressure (KPa/mmHg)

66.5/500

Condition

Clearance under Q =500mL/min, Q =0mL/min

D                                             F

Ultrafiltration: Bovine plasma, HCT 32%±2%, Albumin concentration 60g/L±5g, TMP=200mmhg, 37oC


Model & Specification

F12H

F14H

F16H

F18H

F20H

Effective    membrane area (m2)

1.2

1.4

1.6

1.8

2.0

Blood flow (mL/min)

200

300

400

200

300

400

200

300

400

200

300

400

200

300

400

UFR (ml/h*mmHg)

25.0

28.0

31.0

40.0

27.0

31.0

35.0

36.0

40.0

36.0

40.0

48.0

40.0

46.0

52.0

Blood compartment Volume  (ml)

74

90

96

100

109

Membrane   material

Polyethersulfone (PES)

Housing  & Blood caps material

Polycarbonate (PC)

Sealing  glue material

Polyurethane

Inner diameter  of membrane (μm)

200

Wall thickness  of membrane   (μm)

40

Max. operation  pressure  (KPa/mmHg)

66.5/500

Condition

Clearance under Q =500mL/min, Q =10mL/min

D                                             F

Ultrafiltration: Bovine plasma, HCT 32%±2%, Albumin concentration 60g/L±5g, TMP=200mmhg, 37oC
