  • MTP50 Pediatric X Ray Machine

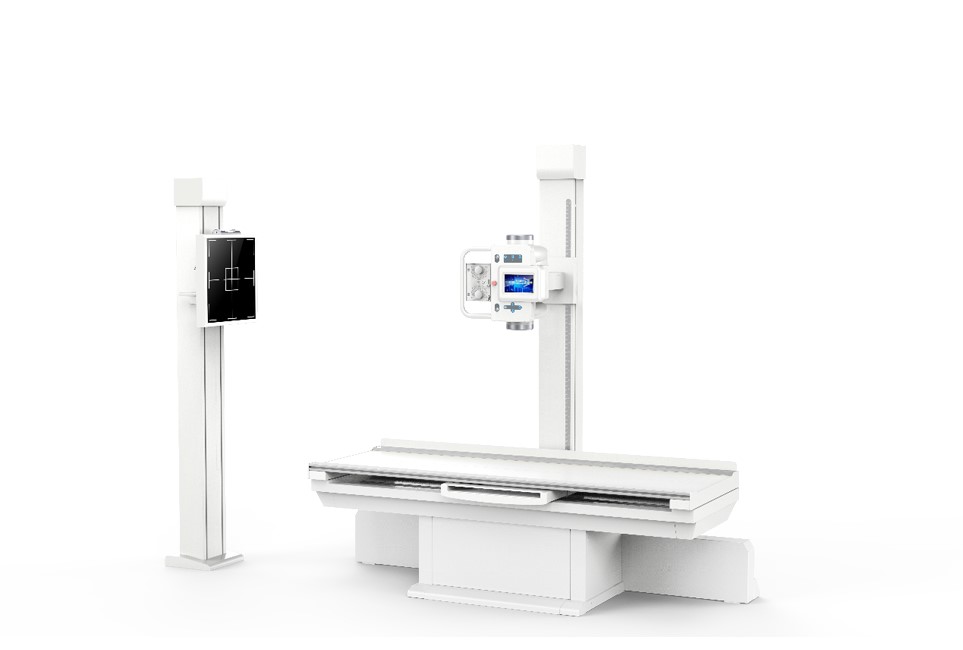

MTP50 Digital Medical X-Ray Radiography System

  • Compact structure, simple operation, small space requirement, easy installation, and few mechanical failures.

  • A four-way floating radiography table achieves automatic or manual operation, which is accurate and easy for the clinical positions.

  • Electric up-and-down x-ray tube can be automatically followed by the flat-panel detector on bucky wall stand.

Key Features of MTP50 Digital Medical X-Ray Radiography System

  • Rotating tube column stand fits stretcher and wheelchair examination.

  • LCD touch screen panel on the stand column can easily achieve adjusting parameters near the table.

  • Electric Control Motion System, Assist in precise positioning, greatly improve work efficiency.


Specifications of MTP50 Digital Medical X-Ray Radiography System

  • Flat Panel Detector: Wireless a-Si Flat Panel Detector; Scintillator material: CsI; Images size: 430mm x 430mm

  • High Frequency Generator: 50kW, 60kHz, 40~150kV, 1kV step, 100~650mA, mAs range: 0.4~650mAs

  • X-ray Tube: Focus: 0.6/1.2mm; Voltage: 150kV; Anode type: Rotating; Anode heat capacity: 300kHU

  • Collimator: Control: Manual; Filter: 1.2mm Al; Light: LED lamp; Automatic SID laser reading; LCD screen value display


Configurations of MTP50 Digital Medical X-Ray Radiography System

No.

Product Name

Quantity

1

Flat Panel Detector

1

2

DXRay Diagnostic Workstation

1

3

High-Frequency Generator

1

4

X-Ray Tube

1

5

Floor-mounted system

1

6

Bucky Stand

1

7

Collimator

1

8

Grid

1

9

High Voltage Cables

2

10

Paper report printer

1

11

Microphone/Speaker

1

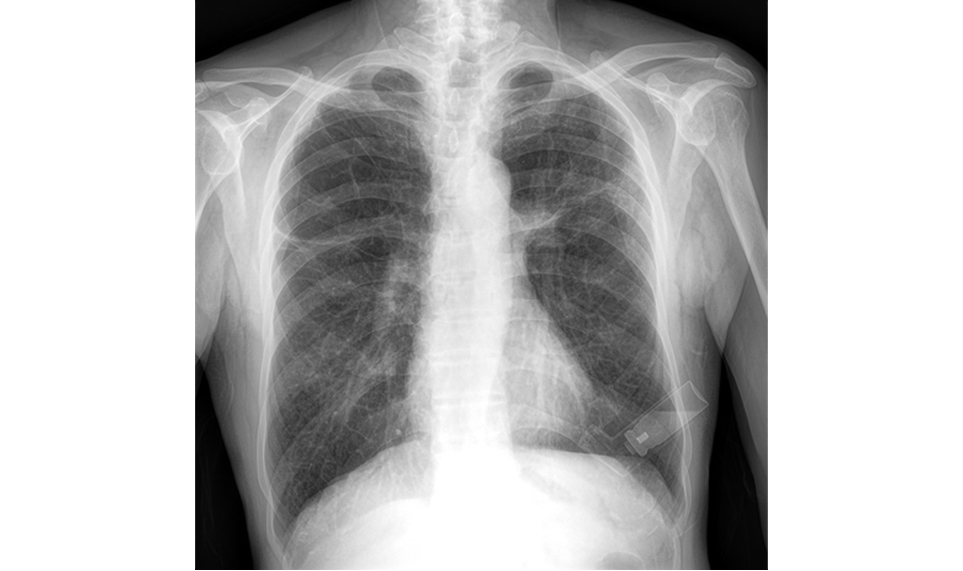

Images of MTP50 Digital Medical X-Ray Radiography System
