  • XI-921 Series Electrolyte Analyzer

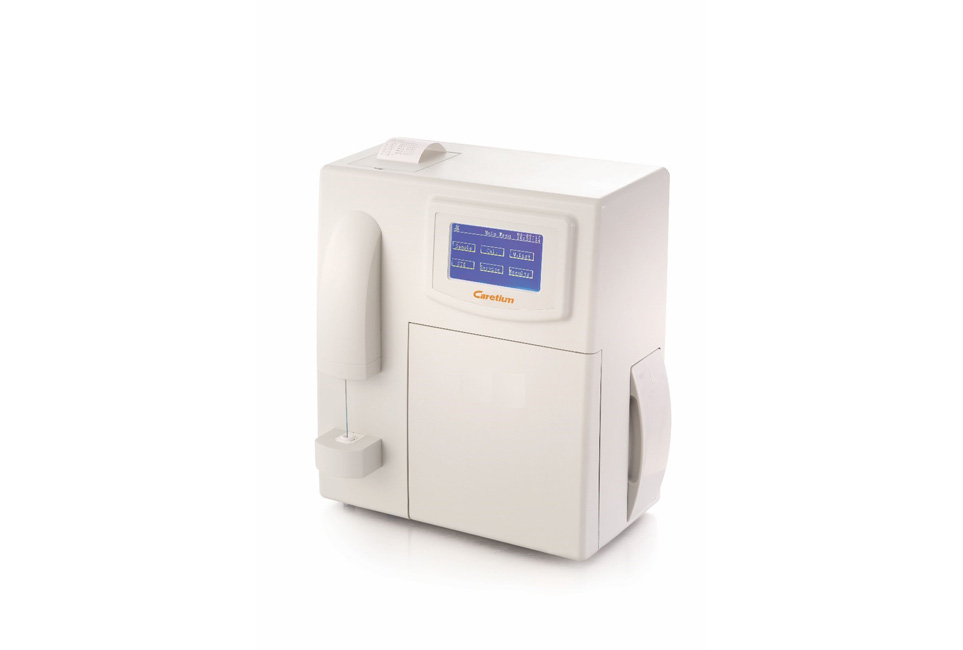

XI-921 Series Electrolyte Analyzer

Compact, cost efficient and easy to use. Excellent precision and reliability. Long life, high performance, maintenance free electrodes.

Available Models of XI-921 Series Electrolyte Analyzer

  • XI-921A: K+ / Na+

  • XI-921F: K+ / Na+ / Cl

  • XI-921E: K+ / Na+ / Cl / Li+

  • XI-921B: K+ / Na+ / Cl / CO2

  • XI-921C: K+ / Na+ / Cl / Ca2+ / pH

  • XI-921D: K+ / Na+ / Cl / Ca2+ / pH / CO2


Key Features of XI-921 Series Electrolyte Analyzer

  • Automatic sampling, washing, and calibration

  • Touch screen, large LCD display

  • Internal thermal recorder, supporting barcode reader

  • Autosampler optional

  • Simple and reliable design of fluid tubing system and electrodes, minimize the maintenance work

  • Automatic sampling and probe washing, Minimize the carryover

  • Touch screen, user-friendly software, easy to operate

  • RS-232 serial port & barcode reader port


Technical Specifications of XI-921 Series Electrolyte Analyzer

  • Principle: Direct measurement by Ion-Selective Electrode (ISE)

  • Sample: Whole blood, serum, plasma, diluted urine

  • Sample volume: 100~150µL

  • Throughput: up to 60 samples/h

  • Data storage: up to 200 patient result

  • Calibration: Automatic or On-demand

  • Input: Touch-screen

  • Display: Large LCD with backlight

  • Output: Internal thermal recorder, RS-232 serial port

  • Working Environment: Temperature: 15ºC~32ºC

  • Relative humidity: 85%

  • Input voltage: AC 220V/110V ±10%, 50/60Hz

  • Power consumption: 60W

  • Dimensions: 440mm×380mm×350mm (H×W×D)

  • Weight Main unit:10kg

  • Auto sampler (option): 1.5kg


Parameter

Linearity range

CV%

K+

0.50~15.00mmol/L

≤1.0%

Na+

30.0~200.0mmol/L

≤1.0%

Cl-

30.0~200.0mmol/L

≤1.0%

Ca2+

0.10~5.00 mmol/L

≤2.0%

pH

4.00~9.50(Unit)

≤1.0%

CO2

6.0~50.0 mmol/L

≤3.0%
