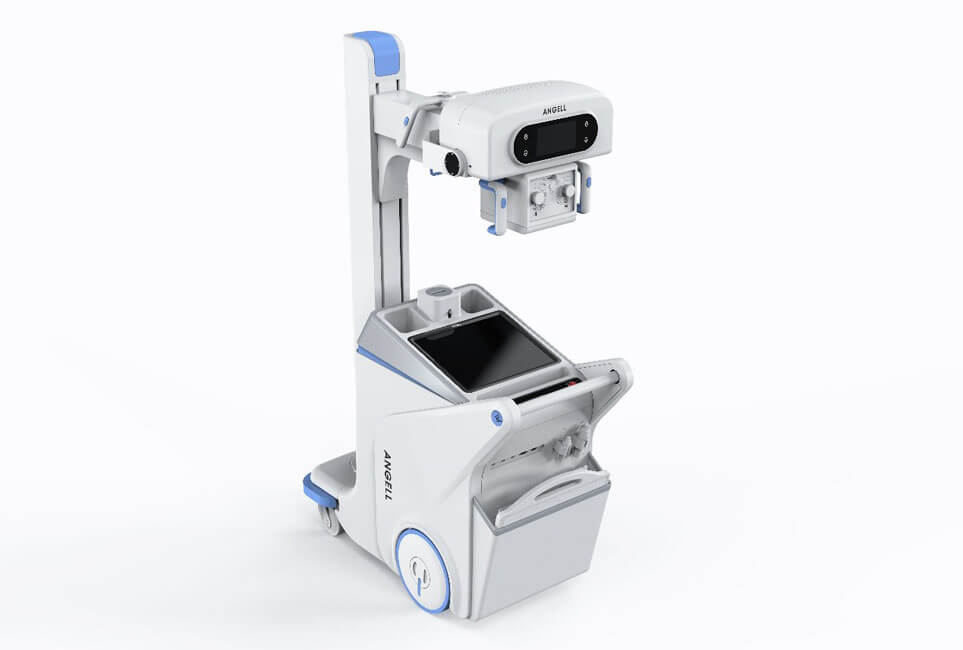

DP326 Mobile Digital Medical X-ray Radiographic System

The Angell DP326 mobile X ray machine for sale is a portable X ray equipment that provides high-quality DR imaging and helps to speed up the examination workflow. Integrated with a 32kW high-frequency generator, digital detector, motor, and large batteries, this X ray mobile machine can be used from the bedside at hospitals, the OR, and medical vehicles. Battery power display device; Independent control system for power assist and high-frequency generator exposure output. Contact us for more information about mobile X ray machine price!

Key Features of DP326 Mobile Digital Medical X-ray Radiographic System

  • Smart design, infinite possibilities

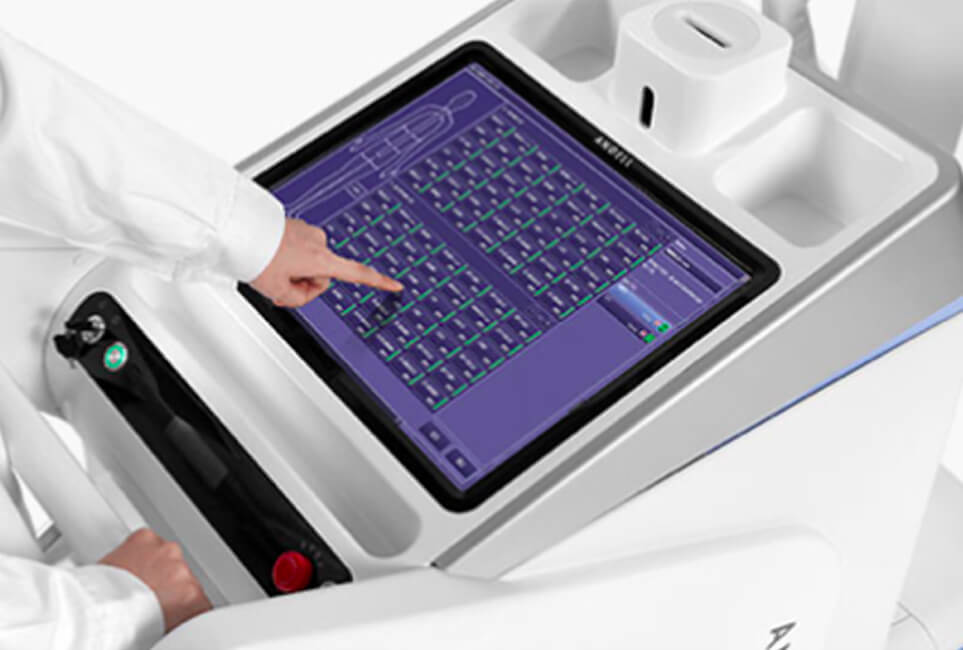

  • 19 inches touch screen, integrated self-designed imaging workstation, good control of radiography information, and optimized mobile radiography workflow.

  • Intelligent electric-drive movement system and smart mechanical design; high-resolution wireless flat panel detector and dual-band wireless transmission technology; smart design, infinite possibilities.

  • A fully digital mobile X-ray machine that provides high-quality DR imaging and helps to speed up the examination workflow. Integrated with a 32kW high-frequency generator, digital detector, motor, and large batteries, it can be used from the bedside at hospitals, the OR, and medical vehicles.


Specifications of DP326 Mobile Digital Medical X-ray Radiographic System

  • Flat Panel Detector: Wireless a-Si Flat Panel Detector; Scintillator material: CsI; Images size: 350mm x 430mm

  • High Frequency Generator: 40kW, 50kHz/60kHz±1Hz, 40~150kV, 1kV step, 50-400mA, mAs range: 1~630mAs

  • X-ray Tube: Focus: 0.6/1.2mm; Voltage: 150kV; Anode type: Rotating; Anode heat capacity: 300kHU

  • Collimator: Control: Manual; Filter: 1.2mm Al; Light: LED lamp; Automatic SID laser reading; LCD screen value display


Configurations of DP326 Mobile Digital Medical X-ray Radiographic System

No.

Product   Name

Quantity

1

Flat Panel   Detector

1

2

DX Ray Diagnostic Workstation

1

3

High-Frequency Generator

1

4

X-Ray Tube

1

5

Collimator

1

6

Mobile   Stand

1

7

Battery   Power Unit

2

8

Tablet

1
