  • VG-70 Portable Medical Ventilator

VG-70 ICU Ventilator

  • An optimal combination of the invasive and non-invasive ventilators.

  • Detachable screen.

  • Comprehensive lung mechanics monitoring.

Description of VG-70 ICU Ventilator


The VG70 is a comprehensive transportable ICU ventilator including lung-protective ventilation modes such as BIVENT and PRVC. It has a flexible configuration allowing for trolley, bed, or ceiling pendant mount. VG70 is an optimal combination of the invasive and non-invasive ventilator. As noninvasive ventilation is used increasingly in a wide range of clinical situations, we offer a dual solution. It combines the advantages of a flexible noninvasive ventilator with a full-featured invasive ventilator for the ICU.



Key Features of VG-70 ICU Ventilator


  • Cost-Effective design

  • Turbine technology

  • High mobility for intra-hospital transport



Technical Specifications of VG-70 ICU Ventilator


Ventilation ModesVCV(A/C), PCV(A/C), PRVC, SIMV(VCV)+PSV,
SIMV(PCV)+PSV, SIMV(PRVC)+PSV, SPONT/CPAP+PSV, BIVENT+PSV, NIV/CPAP, NIV-T, NIV-S/T
Parameters
Tidal Volume20~2000 ml
Respiration Rate1~80 bpm
Tip0.2~9 s
Tpause0~4 s
I: E Ratio1: 10~4: 1
FiO221%~100%
Trigger SensitivityPressure (-20~0 cmH2O, above PEEP)
PEEP0~35 cmH2O
Support0~70 cmH2O
Pin5~70 cmH2O
Essense5%~80%
Special ProceduresApnea Ventilation, Smart Suction, Manual Breath, Insp/ Exp Hold,
ETCO2 Measurement, Nebulization, Waveform Freeze
Monitoring
Pressure ValuePeak, Pplat, Pmean, Pmin, PEEP
Volume / Flow ValueVti, Vte, MV, MVspont
Time Valuetotal, font, I: E
Real-Time CurvesPressure-Time, Flow-Time, Volume-Time waveforms, Pressure-Volume, Volume-Flow, Flow-Pressure loops
Gas MonitoringFiO2, ETCO2
Calculated ValuesCompliance(C), Resistance(R), MVleak, RSBI, WOB, PEEPi
AlarmPaw high / low, MVA high/low,
Circuit disconnect, FiO2 high/low, Inspiration / Expiratory tidal volume low,
High Respiration Rate, Apnea AC Failure, Nebulizer On, Low Battery,
Air /O2 supply down, High / Low PEEP,
Leakage out of range, Occlusion
Technical Data
Screen12.1" color touch screen (detachable)
Supply GasO2, 0.28~0.6 MPa
Power SupplyAC110~240 V, 50 Hz/60 Hz
Communication InterfaceRS-232 Port, Nurse call Port, Ethernet Port
Dimension (WxDxH)322 mm x 375 mm x 366 mm (Main Unit)
547 mm x 675 mm x 950 mm (Cart)
Weight12.5 kg (Main Unit)
25 kg (Cart)

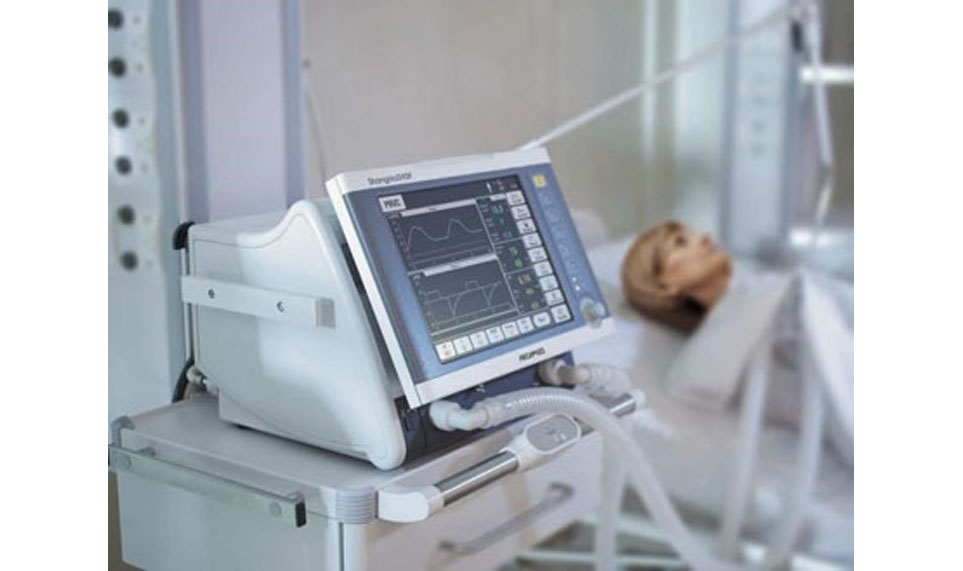

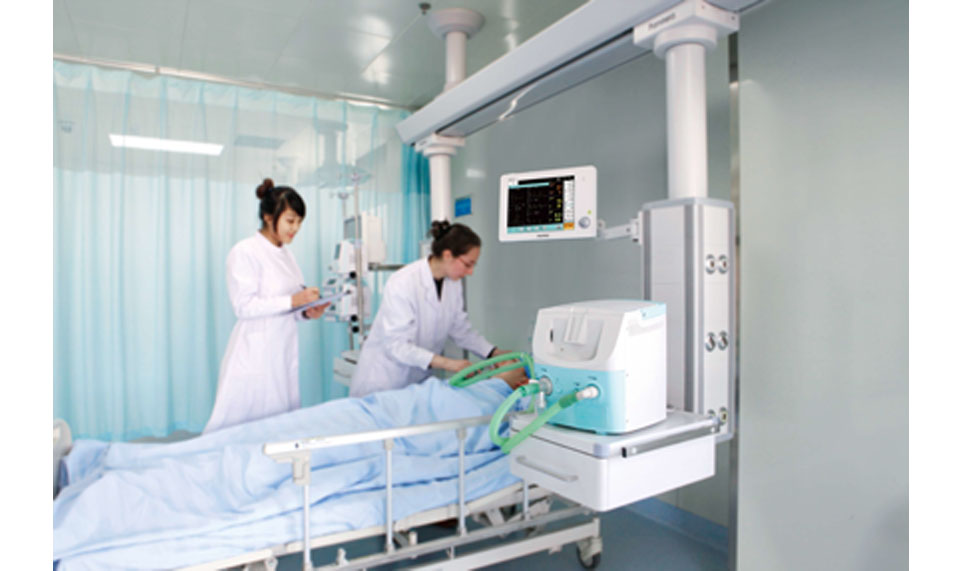

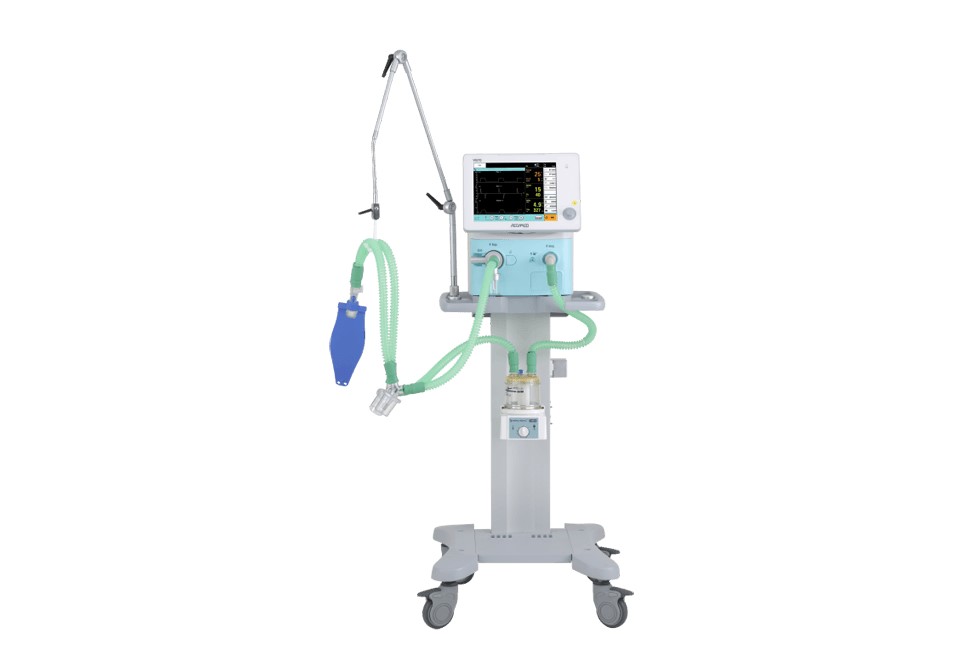

Image of VG-70 ICU Ventilator
