  • Y6y Ultra Low Hospital Bed

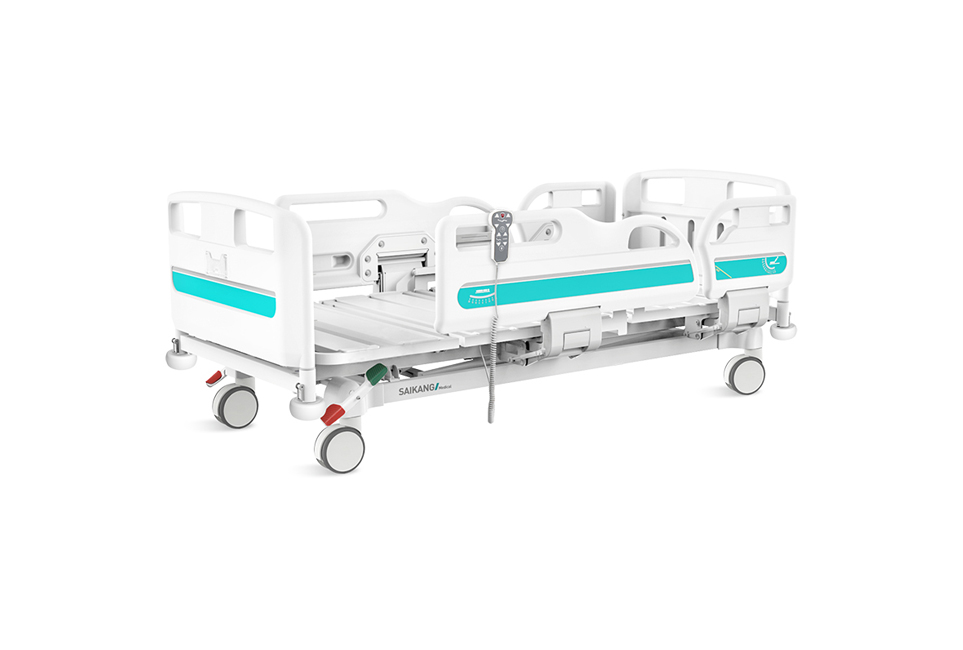

Y6y Electric Hospital Bed

  • Double auto-regression function

  • Super-low bed position 360mm

  • PP bed platform, Removable & washable

Key Features of Y6y Electric Hospital Bed


  • Angle Indicator for backrest

  • Easy patient mobilization

  • PP safety guardrail with two steps unlocking system, patent design

  • Double regression function

  • Electric motor

  • Bed extension: Extended bed platform up to 20CM, comfortable for the tallest of patients (option)



Optional Features of Y6y Electric Hospital Bed


  • Manual CPR

  • Bed extension 200mm

  • Back up battery

  • Nurse control panel

  • Emergency stop button

  • Directional wheel function

  • 5th and 6th extra side rail for full protection

  • Monkey pole

  • Balkan frame



Technical Parameters of Y6y Electric Hospital Bed


External size (LxWxH)

2130x1050x(360-800)mm

Mattress platform

1925x880mm

Safe working load

250kg

Back-rest adjustment

0-75°(±10°)

Knee-rest adjustment

0-35°(±10°)

Mattress size

L1925*880*10mm

Bumper wheel

4xΦ80mm



Technical Configuration of Y6y Electric Hospital Bed


Linear motor

3pcs

5" double side castors, central locking system

4pcs

ABS oasis side rail extra height

1 set

ABS oasis bed ends with safe lock

1 set

PP bed platform, removable &washable

9pcs

Plastic socket inside PP guardrail for phone or glasses

2pcs

Patent angle indicator for back-rest and Trendelenburg position

4pcs

φ100mm wall bumper wheel

4pcs

IV pole

1set

IV pole prevision

4pcs

Drainage hook

2pcs

Central locking pedal

2pcs

ABS mattress stopper

2pcs
