  • Table Top Autoclave TM-XD Series

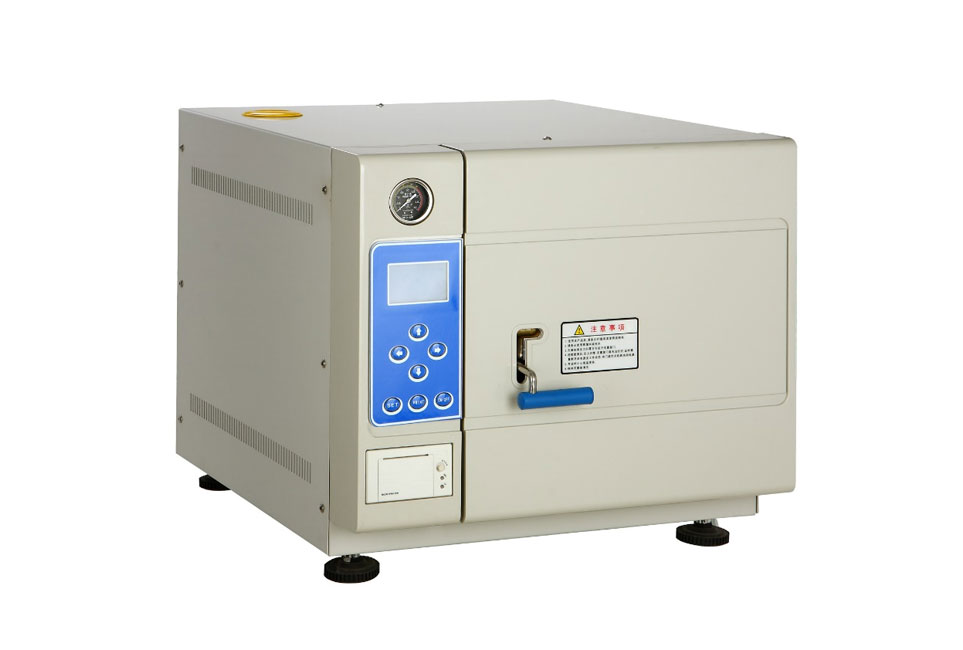

Table Top Steam Sterilizer TM-XD Series

The product utilizes saturated steam to rapidly and efficiently sterilize articles. Table top steam sterilizer can be used in hospitals, public health centers, health stations, clinics in factories and mines, scientific research institutes, etc, to sterilize medical equipment, surgical dressings, glass utensils, solutions, substrata. Similar to portable pressure steam sterilizer, it can also be used as a cooker in plateau areas and be used to make high-quality drinking water in industrial and mining enterprises.

Key Features of Table Top Steam Sterilizer TM-XD Series


  • For 4~6 minutes rapidly sterilizing.

  • Digital display of working status, touch type key.

  • Exhaust the 3 fixed cycles of sterilizing program and adjustable for the user.

  • The whole process of water adding, temperature rising, sterilizing, drying steam discharging is controlled automatically.

  • Steam water inner circulation system: no steam discharge and the environment for sterilizing will be clean and dry.

  • Safe cool air automatically.

  • Door safety lock system.

  • With four stainless steel sterilizing plates.

  • The chamber of the sterilizer is made of stainless steel.

  • Automatically shut off with beep reminding after sterilization.

  • With drying function.



Product Parameters of Table Top Steam Sterilizer TM-XD Series


MODEL

TM-XD20D

TM-XD24D

Technical Data

Sterilizing chamber volume

20L

φ250×420mm

24L

φ250×520mm

Working pressure

0.22Mpa

Working temperature

134℃

Temperature adjust range

105-134℃

Timer range

0-99min

Heat average

≤±1℃

Power

1.5KW/AC220V.50Hz

Sterilizing plate

340×200×30(3piece)

400×200×30(3piece)

Dimension

480×480×380

580×480×384

Exterior package dimension

700×580×500

800×580×500

G.W/N.W

43/40Kg

50/45Kg
