  • 590P Intensive Care Ventilator

Shangrila 590P ICU Ventilator Machine

  • Excellent ventilation modes.

  • Comprehensive monitoring system.

Description of Shangrila 590P ICU Ventilator Machine


Shangrila 590P intensive care unit (ICU) ventilator (or simply ventilator in context) is a mechanical ventilator, a machine designed to move breathable air into and out of the lungs, to provide breathing for a patient who is physically unable to breathe, or breathing insufficiently. Ventilators are chiefly used in intensive care medicine, home care, and emergency medicine (as standalone units) and in anesthesia (as a component of an anesthesia machine).



Key Features of Shangrila 590P ICU Ventilator Machine


  • Further Clinical Support

  • Advanced Medical Engineering Technology



Technical Specifications of Shangrila 590P ICU Ventilator Machine

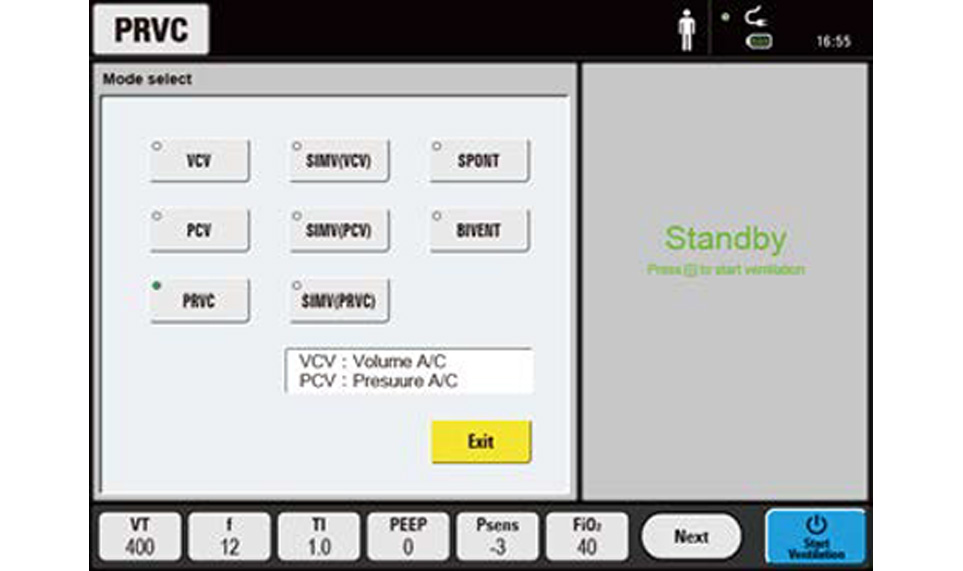

Ventilation Modes

VCV, PCV, PRVC, SIMV(VCV)+PSV, (PCV)+PSV  SIMV(PRVC)+PSV, BIVENT+PSV NIV/PCV NIV/PSV

Parameters


Tidal Volume

20~2500 ml

Respiration Rate

4~100 bpm (VCV, PCV & PRVC mode)

1~40 bpm (SIMV mode)

Tip

0.1~12 s

Tpause

0~4 s

I: E Ratio

4:1-1: 9

FiO2

21%~100%

Trigger Sensitivity

Pressure (-20~0 cmH2O, above PEEP)

PEEP

0~50 cmH2O

Support

0~60 cmH2O

Pin

5~60 cmH2O

Essense

5%~80%

Special Procedures


Inspiration hold, Expiration hold

Manual inspiration, Waveform freeze

30 mins nebulizer, Suction (max 2min), Screen lock

Monitoring


Pressure Value

Peak, Pplat, Pmean, PEEP

Volume / Flow Value

Vti, Vte, MV, Mvspont

Time Value

total, font, I: E

Real-Time Curves


Pressure-Time, Flow-time, Volume-time,

pressure-Volume loop, Flow-volume loop

Oxygen Monitoring

FiO2

Lung Mechanics

Dynamic and static compliance, resistance, auto-PEEP

Alarm


Paw high / low, MV high / low, PEEP high / low,

Circuit disconnnected, FiO2 high / low,

Airway pressure continous high, front high, Apnea,

Expiratory tidal volume high/low, Power supply failure,

Nebulizer on, Battery low,  Air supply down,

O2 supply down, Fan block, Pipe block

Technical Data


Screen

12.1" color touch screen (detachable)

Supply Gas

O2, Air 0.28~0.6 MPa

Power Supply

AC110~240 V, 50 Hz/60 Hz, ≤65 VA

Internal Battery

>1 hour

Maximum Security Pressure

≤8 KPa

Compliance

≤4 ml / 100 Pa

Noise

≤65 dB(A)

Communication Interface

RS232, VGA, nurse call

Dimension (WxDxH)

410 mm x 410 mm x 328 mm

Weight

20 kg

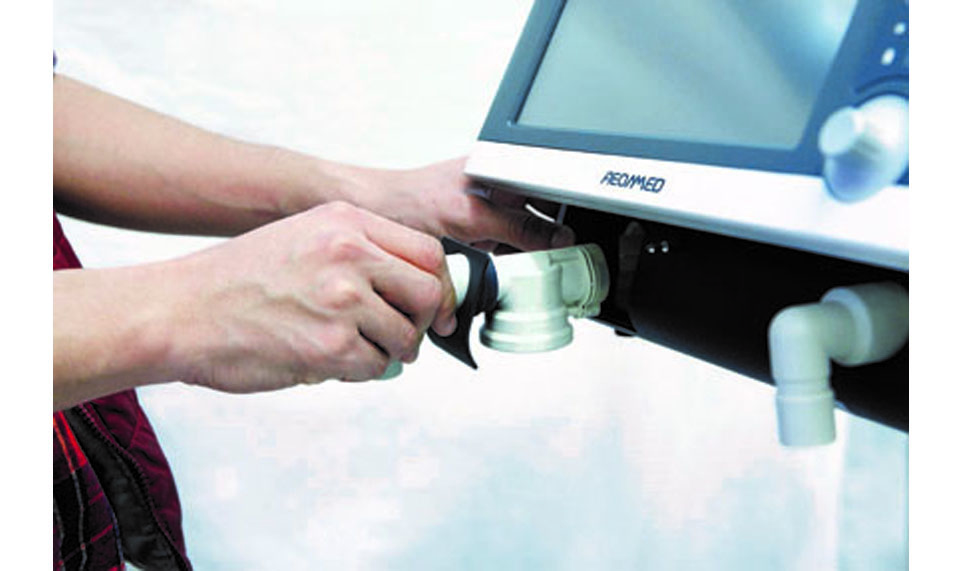

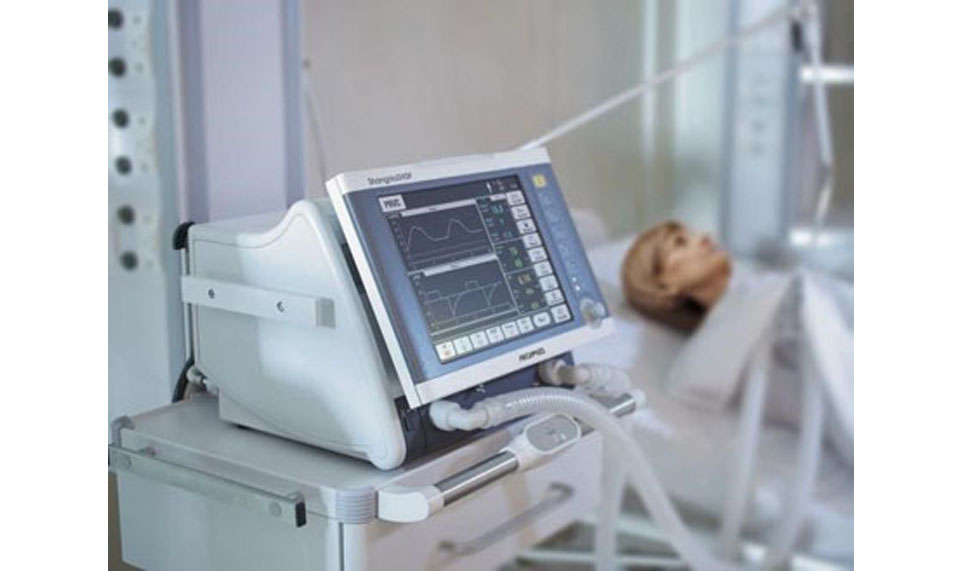

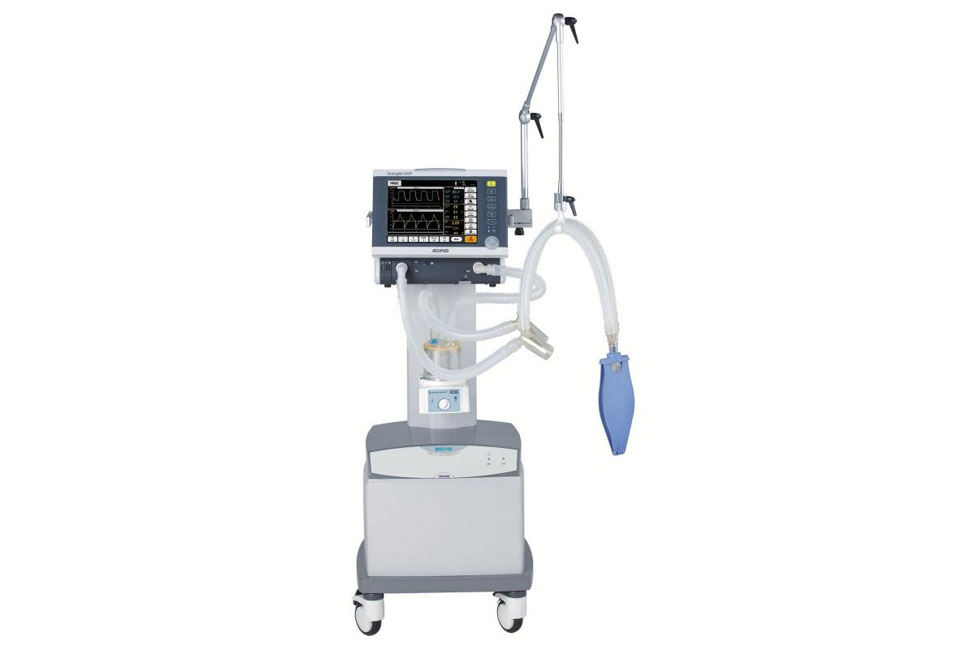

Image of Shangrila 590P ICU Ventilator Machine
