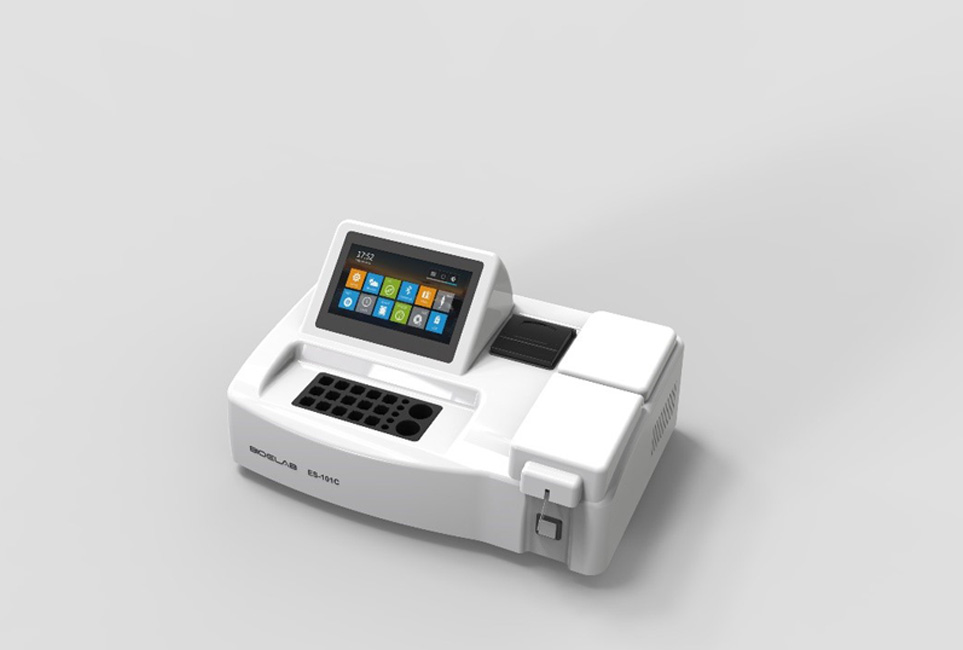

  • ES-101C Semi Biochemistry Analyzer

ES-101C Semi-auto Chemistry Analyzer

  • TOUCH SCREEN Microprocessor Biochemical and Coagulation Analyzer, which measures the biological indicators, more than 50 elements plus Coagulation test TT, PT, APTT.

  • Coagulation Testing.

  • Windows Embedded Compact 7.

  • 7.0″ True Color Touch Screen (800 x 480 pixels).

Key Features of ES-101C Semi-auto Chemistry Analyzer

  • 7.0″ True Color Touch Screen (800 x 480 pixels)

  • 4 USB ports and 1 Ethernet port

  • Inside multi-function incubator

  • Have facility for operation with the click of the mouse, computer keyboard, interface for external printer & LIS data transmission

  • Memory: DDR2 SDRAM: 1G bit; Flash: 256 MB

  • Over 300 programs, 200000 results can be stored

  • USB port (host) for keyboard, mouse, printer, U disk, bar code reader, etc

  • USB port (slave) for PC connection (support PC software control function)

  • CPU: ARM Cortex-A8,720M Hz


Specifications of ES-101C Semi-auto Chemistry Analyzer

  • Test method: 1point end, 2point end (Sample blank), Kinetics, Fixed-time, Coagulation (optional).

  • Optics: 7 standard filters:34nm, 405nm, 450nm, 505nm, 546m, 578nm, 630nm; 2 more for optional.

  • Lamphouse: Long-life tungsten halogen lamp(6V/10W), auto-sleep function.

  • Display: 7.0" TFT LCD with touch screen800*480 pixels.

  • Printer: Build-in thermal printer,57mm printer paper.

  • Temperature: 25, 30, 37℃ and Room temperature. By means of Peltier elements.

  • Flow cell capacity & optical path: 32ul, 10mm.

  • Resolution: 0.0001 Abs.

  • Photometric range: 0.0000-4.0000 Abs.
