I50 B/W Ultrasound

The i50 is an impressive mobile ultrasound system providing reliable value and durable quality across a wide range of applications. With the added support of pulsed wave doppler imaging, the i50 meets higher diagnostic requirements. This is an economical for general purpose B&W Ultrasound system.

Key Features of I50 B/W Ultrasound

  • C Cutting edge imaging processing technologies realize remarkable ultrasound images

  • Affordable Black and White Ultrasound with excellent PW function

  • 12.1″High definition LCD monitor, 0-90 degree adjustable angle

  • 1 activated transducer port, extension supported

  • Support more than 200 frames image permanent storage, optional U disk for storage extension

  • Software packages: Abdomen, Cardiac, Obstetrics, Gynecology, Urology, Small Parts

  • One key full screen display, easy to view from distance

  • Optional printing module prints report and image directly by laser printer

  • Optimization key: Multi parameters presets and one key image optimization

  • Integrated smart workstation: large storage capacity and convenient data management

  • Built-in Lithium battery support at least 2 hours continuous work

  • Data Interface:  Video, S-Video, USB, VGA, RS-232, RJ45


Technical Specifications of I50 B/W Ultrasound

  • Application: Obstetrics, Gynecology, Urology, Cardiology, Small Parts, Blood Vessel, Superficial, Thyroid, Galactophore, Custom

  • Transducer Types: Convex transducer, Linear transducer, Trans-vaginal transducer, Micro-convex transducer

  • Imaging Modes: B-Mode, 2B/4B-Mode, M-Mode, B/M-Mode, PW-Mode

  • Imaging Technique & Function: Harmonic Imaging, Multi-Beam-Forming, Speckle Reduction Imaging (eSRI), Synthetic Receiving Aperture, Pan Zoom, Needle Guide

  • Display Modes: B, B+B, 4B, M, B+M, B+PW

  • 12.1" TFT-LCD monitor

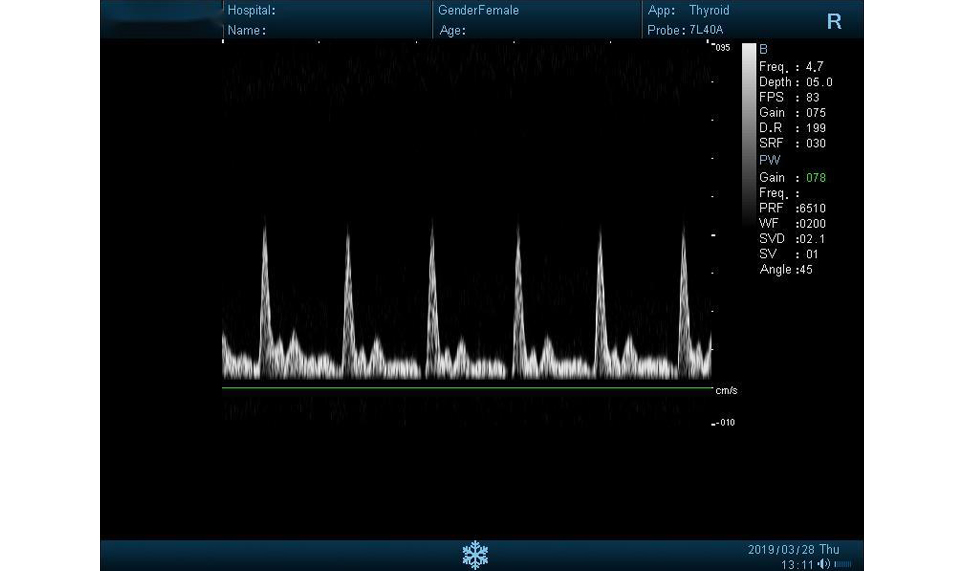

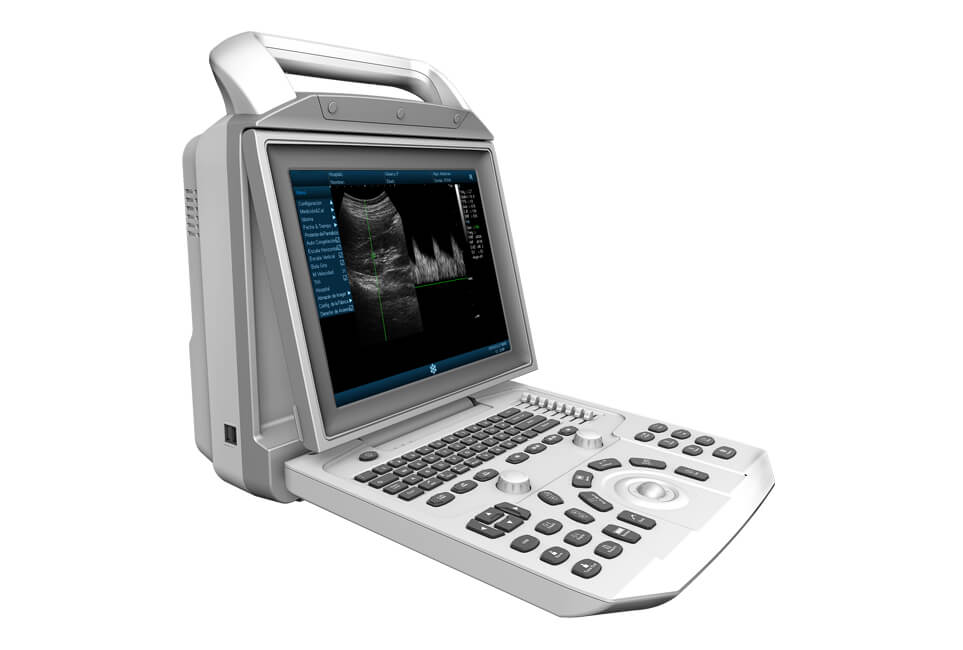

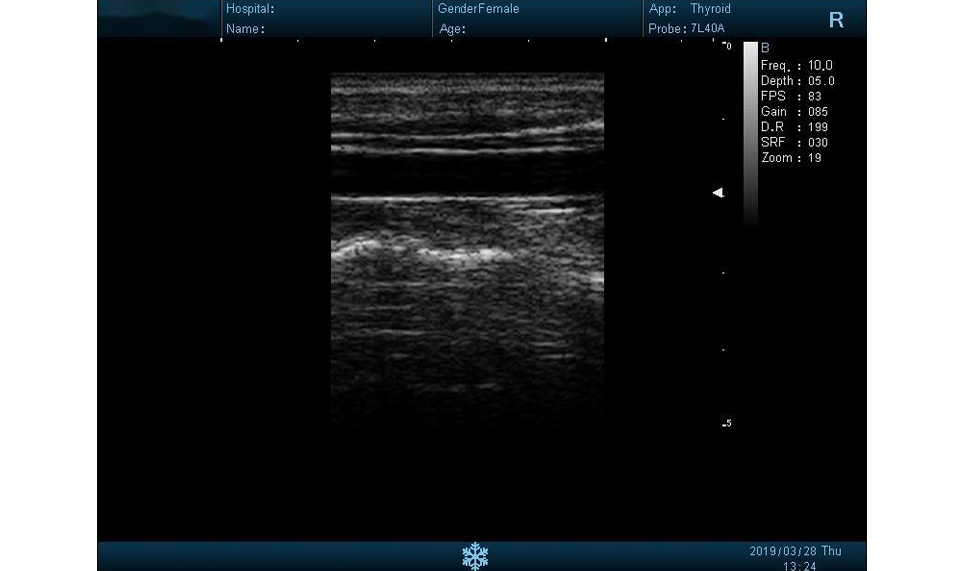

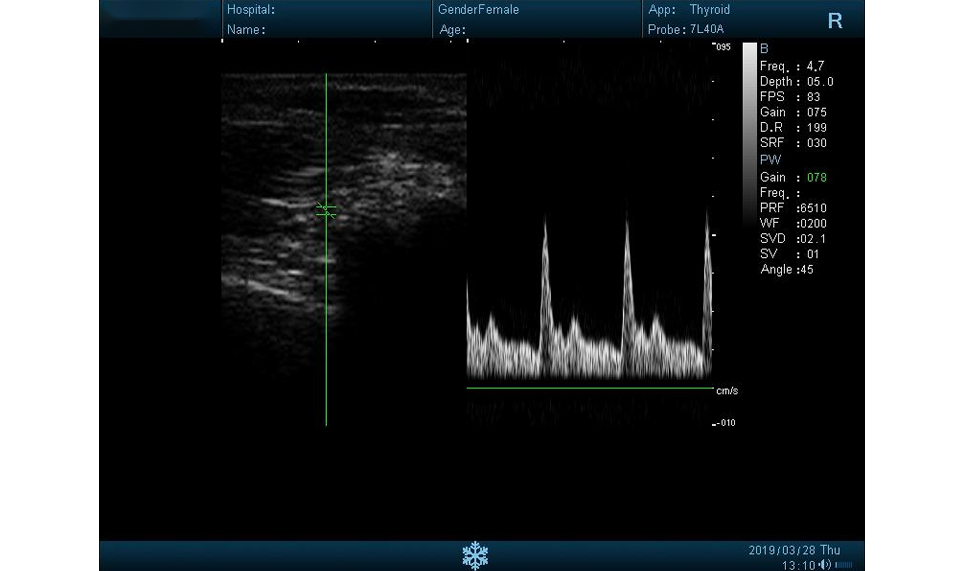

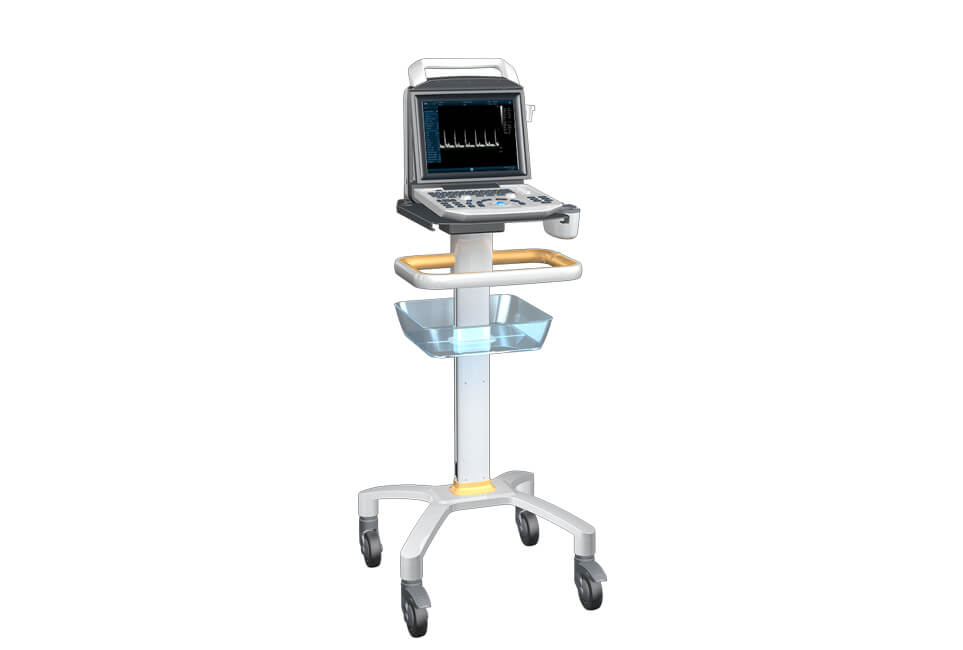

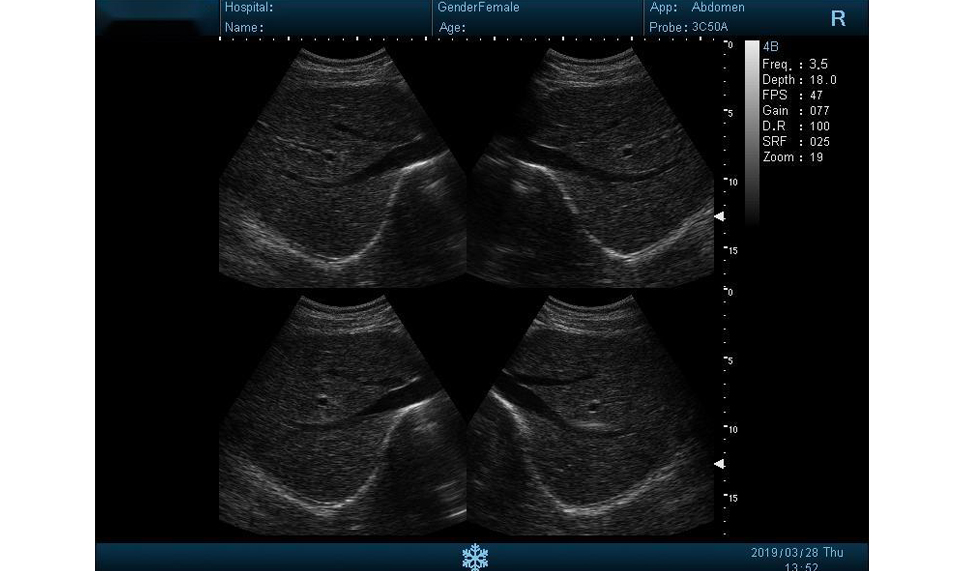

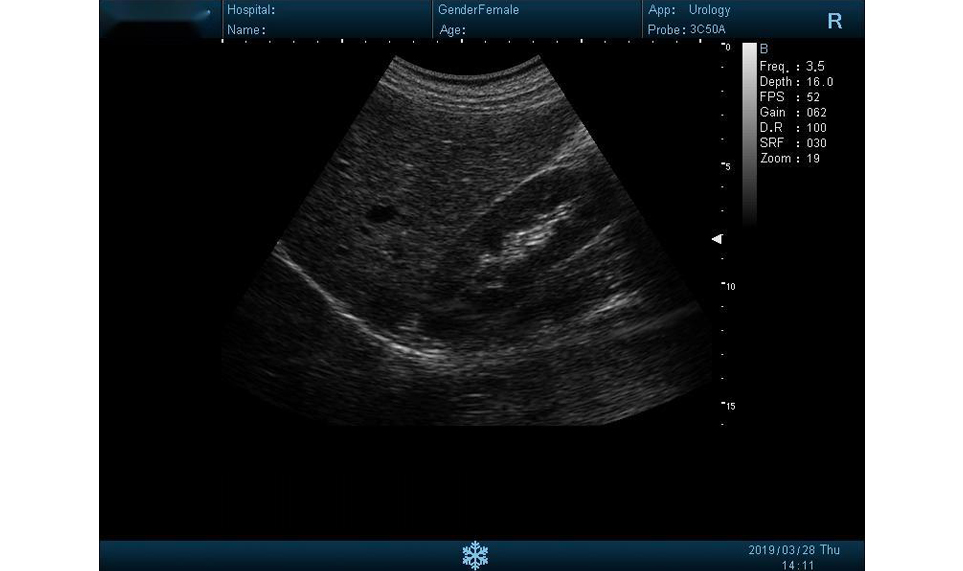

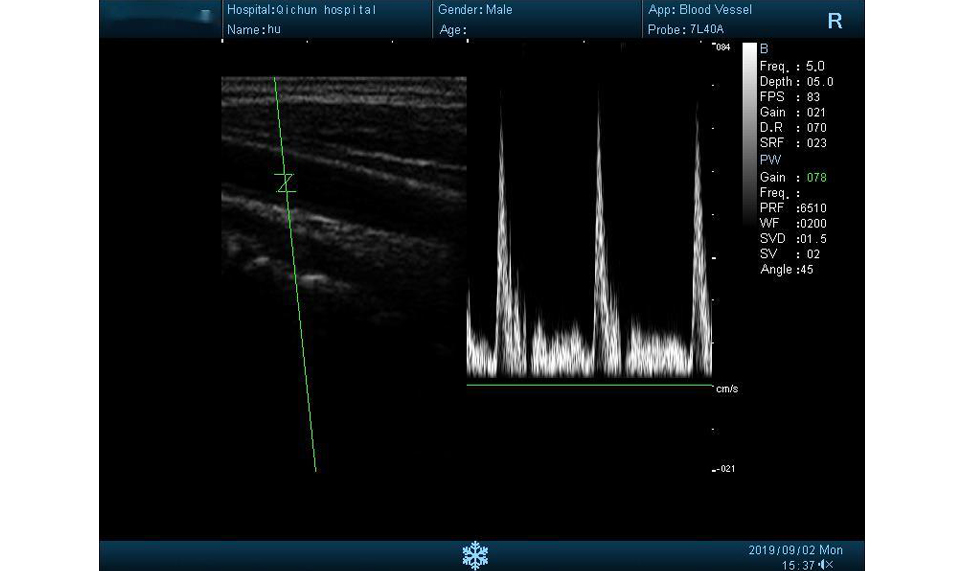

Images of I50 B/W Ultrasound
