BYS-820/BYS-820D Infusion Pump

  • One-key operation to fulfill conversion between d/min and ml/h.

  • System self-test is completed as turning on, which ensures safe work.

  • Display with LCD and LED to make remote observation possible.

Key Features of BYS-820/BYS-820D Infusion Pump


  • Lower noise and less vibration are supported by the application of motor driver IC imported from Germany and motor imported from Japan.

  • 3 Levels of occlusion pressure are available (high/medium/low).

  • Voice Alarm System: Exclusive technology to fulfill a combination of the human voice, legible words, and lights.

  • Up to 2000pcs records, including infusion start time, finish time, infusion rate, and infused volume.



Technical Specifications of BYS-820/BYS-820D Infusion Pump


Model

BYS-820

BYS-820D

Screen

HD LCD Display

HD LCD Display

Work modes

2 working modes:
ml/h and drop/min

2 working modes:
ml/h and drop/min

UI

English, Chinese, Russian, can customize language with quantity required.

Quick start, rapid installation

Auto-lock knob

Night mode optional

IV set

Univeral standard infusion sets

INFUSION rate range

ml/h mode: 1~1200ml/h (1ml/h step)
drop/min mode: 1~266drop/min (1drop/min step)

Nominal flow rate accuracy

ml/h mode: Within ±5%
drop/min mode: Within ±3%

Volume to be infused (VTBI)

1-9999ml

Purge/Bolus

KVO, Bolus, Purge, Anti-bolus

KVO Rate

1-5ml/h (1ml/h step)

Bolus

Manual Bolus

Pressure detection system

3 Levels

Alarm

Audible and Visible Alarms

CPU

Dual microprocessor controlled

IP level

IPX2

Medicine Library

No

1000 drugs

History

No

2000pcs records

Power

100-240V, 50/60Hz; voltage=11.1V, 4 hours backup

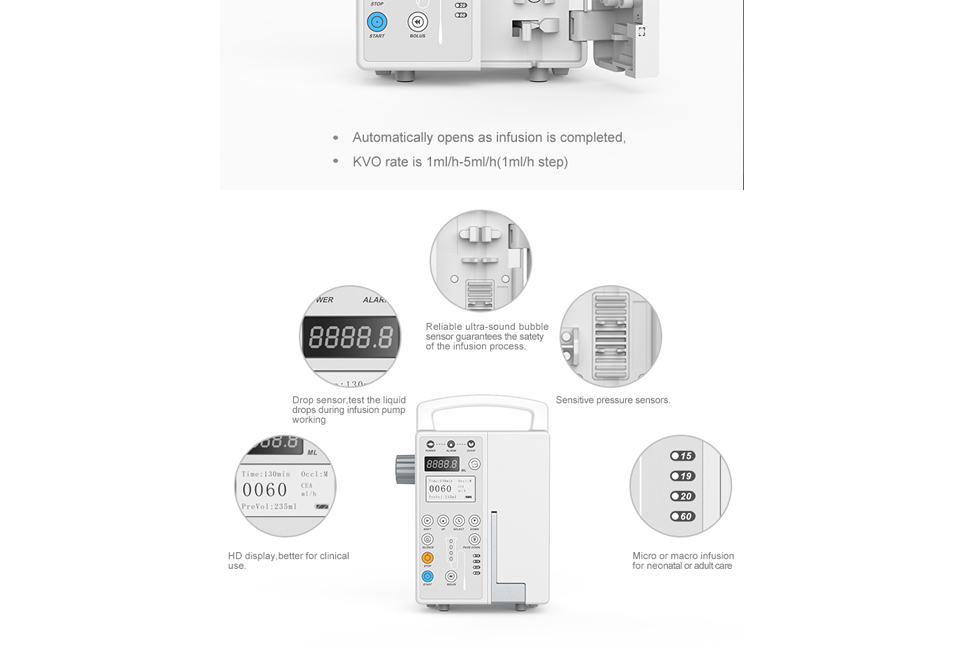

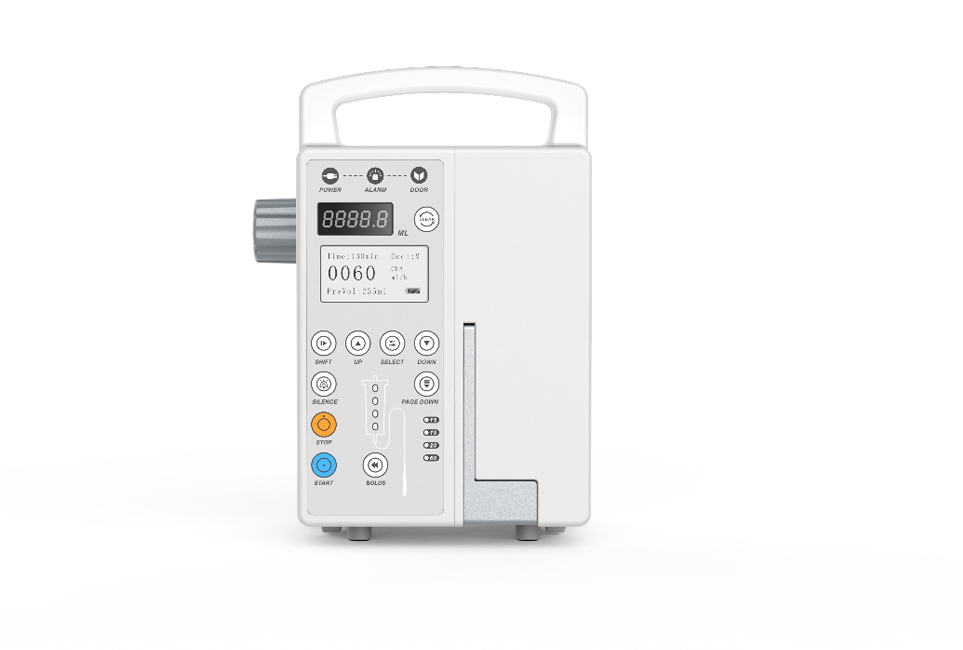

Image of BYS-820/BYS-820D Infusion Pump
