  • ES-100P Semi Auto Analyser

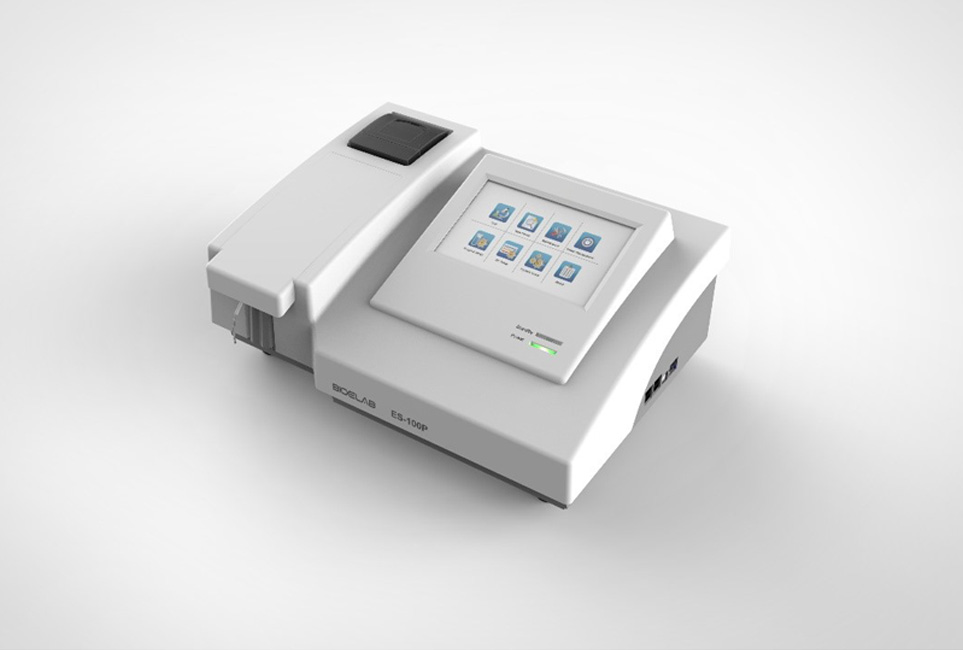

ES-100P Semi-auto Chemistry Analyzer

  • On-line reaction graph for chemistry tests.

  • Display and calculate results with resolution of absorbance fourth decimal 0.0001 with measurement range 0.0000 to 3.0000 Abs.

  • This biochemistry analyser machine has 2 Reading modes for flow cell, cuvette.

ES-100P Semi-auto Chemistry Analyzer Key Features

  • Building-in thermal printer, 57mm printer paper.

  • 7" color display with touch screen operations. 800x480 pixels.

  • Interference Filters: 340, 405, 450, 505, 546, 578, 630 nm

  • Have facility for operation with the click of the mouse, computer keyboard, interface for external printer & LIS data transmission.

  • Memory: DDR2 SDRAM: 1G bit; Flash: 256 MB.

  • Over 300 programs, 200000 results can be stored.

  • USB port (host) for keyboard, mouse, printer, U disk, bar code reader, etc.

  • USB port (slave) for PC connection (support PC software control function).

  • CPU: ARM Cortex-A8, 720M Hz.


ES-100P Semi-auto Chemistry Analyzer Specifications

  • Test method: 1point end, 2point end (Sample blank), Kinetics, Fixed-time, Coagulation (optional).

  • Optics: 7 standard filters:34nm, 405nm, 450nm, 505nm, 546m, 578nm, 630nm; 2 more for optional.

  • Lamphouse: Long-life tungsten halogen lamp(6V/10W), auto-sleep function.

  • Display: 7.0" TFT LCD with touch screen800*480 pixels.

  • Printer: Built-in thermal printer,57mm printer paper.

  • Temperature: 25, 30, 37℃ and Room temperature. By means of Peltier elements.

  • Flow cell capacity & optical path: 32ul, 10mm.

  • Resolution: 0.0001 Abs.

  • Photometric range: 0.0000-4.0000 Abs.
