  • D2w Manual Patient Bed
  • D2w Manual Patient Bed

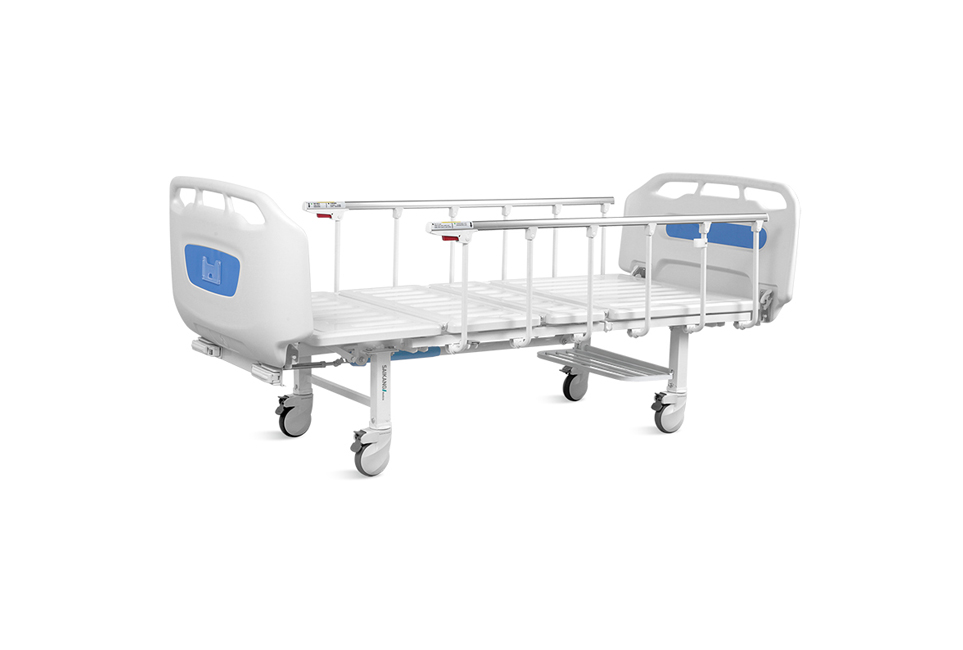

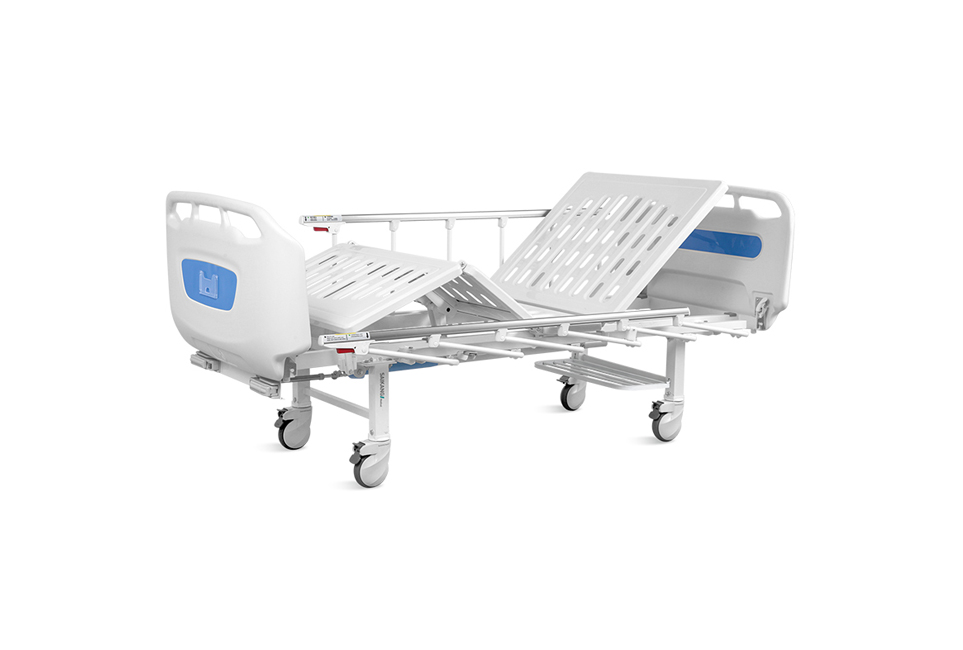

D2w Manual Hospital Bed

  • Extra-long and height head footboard, with a curve, surrounded design, provide comforting feeling for patients.

  • Environmental plastic can be sterilized at 100°C, tensile up to 30MPa Virgin ABS material.

Key Features of D2w Manual Hospital Bed


  • Baosteel from Fortune Global 500 11 Process epoxy painting, ASTM testing anti-bacterial, paint thickness 0.12 mm, brightness 60°, paint can resist 50 kg impact.

  • Panasonic robotic ensure, 360° full smooth welding Solid bed base made of 5.0 mm stamped rotating plate.

  • Retractable hand crank, 100,000 times remaining intact.

  • Extreme protection device sounds when tipped to the max position.

  • Strong pallets to increase the bed height adjustment.

  • Stamping forming platform, smooth surface no welding scar, bearing.

  • 250KG load. Option resin X-ray translucent platform.

  • L-shaped foldable guardrail (Patent) with Pro Ergo-Handle™, patented parts, with red and green marks to indicate if the side rail is locked or not.



Specifications of D2w Manual Hospital Bed


  • Grace cre series

  • 2 functions manual

  • USFDA, CE, ISO, SFDA

  • Side Rail with Proergo-Handle™



Technical Parameters of D2w Manual Hospital Bed


External L*W*H

2245x1000x510 mm

Mattress platform

1925x830 mm

Safe working load

250kg

Back-rest adjustment

0-75°(±10°)

Knee-rest adjustment

0-35°(±10°)



Technical Configuration of D2w Manual Hospital Bed


Manual cranks

2pcs

5" hardshell castors

4pcs

Foldable side rail with proErgo-Handle

1set

ABS grace bed ends with safe lock

1set

IV pole

1set

IV pole prevision

4pcs

Drainage hook

2pcs

Shoe holder

1set
