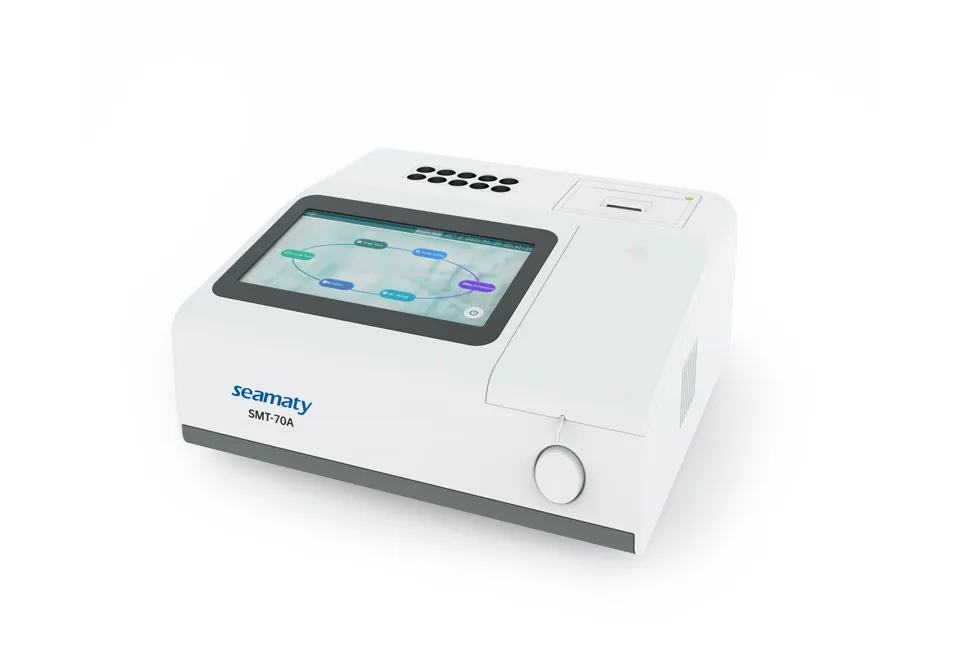

Economic semi-auto biochemistry analyzer with incubators provides basic solution for clinical diagnosis.
7 touch screen
Over 2000 hours'long-life halogen lamp
Reaction curve real real-time display
Thermal printer,auto&manual print
Flowcell & cuvette modes
Less and easy maintenance
Measurement Mode | Three measurement modes:32μL flow cell, 18μL flow cell (optional),and cuvette optional |
Light Source | Halogen lamp6V/10W, automatic energy-saving sleep mode |
Range of Absorbance | Display 0.000~4.000Abs, internal resolution 0.00001Abs |
Incubation | Integrated incubator with 10 postions |
Carryover | <1% |
Power Supply | AC 100-240V,50/60Hz |
Printer | Built-in 57mm thermal printer |
Internal Storage | >300 reagent assay,>200,000 test results |
Usage Environment | Environmental temperature 5-35℃, Humidity 30%-85% |
| Spectral System | Hard narrowband filter,standard with 6 wavelengths(340nm,405nm,505nm,546nm, 578nm,630nm),2 optional wavelengths |
| External Port | Network interface,2 USB,can be connected to external computer,printerkeyboard and mouse(optionai) |
| Display | 7 capacitive sensitive touch screen, display resolution 1024*600,IPS full-color high-definition fullview angle |
| Test Method | Endpoint method,kinetics,two-point kinetics/ fixed time method,simple absorbance test, linear and nonlinear calibrationsupporting single/dual wavelength |
| Reagent | Custom editing function for testing projects, suitable for various biochemical clinicai reagent projects |
Volume Net Weight | Net Weight： L280mm*W240mm*H130mm; 3.5Kg |
