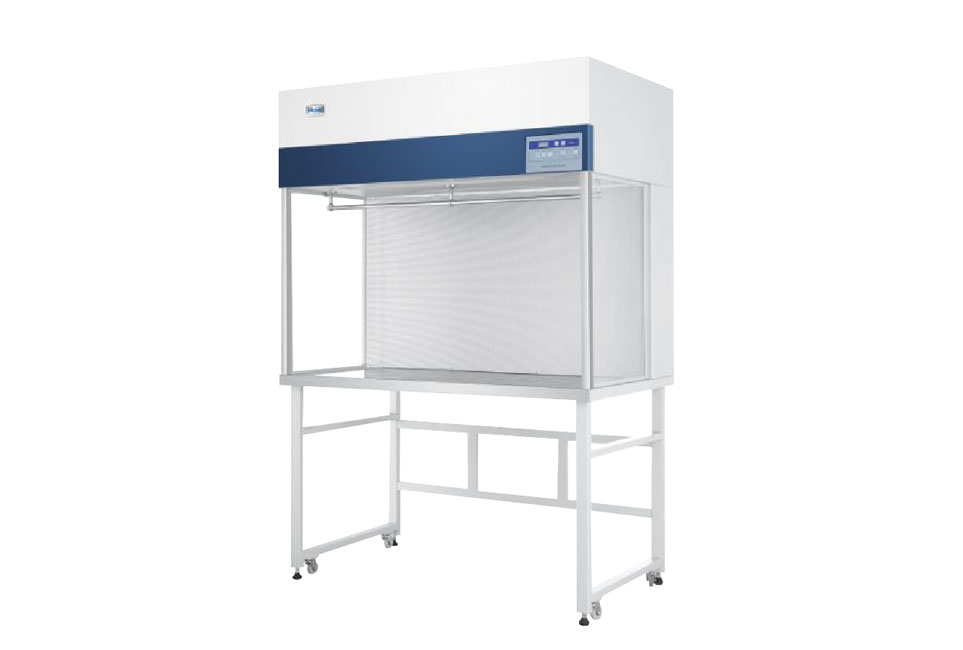

  • Horizontal Laminar Flow Clean Bench HCB-130H

Clean Bench & Laminar Flow HCB-130H/HCB-1600H

Horizontal laminar flow cabinet is suitable for pharma, medical, electronics, and other applications that require air purified clean bench working area.

Key Features of Clean Bench & Laminar Flow HCB-130H / HCB-1600H


  • Cleanliness Better Than Level 100:

  • Fire retardant glass fiber HEAP with filtration efficiency of 99.99%@0.3μm, to ensure cleanliness superior to the Grade 5 of ISO14644.1 or the Grade 100 of FED STD 209E, safer and cleaner

  • Intelligent linkage and interlocking design between interior light and UV lamp to avoid mal-operation

  • Pre-cleans the operation space before the first use, to assist the user in protecting the samples during experiments

  • The timing startup appointment of UV sterilization upon our patented technology provides the user much free time to improve work efficiency



Product Parameters of Clean Bench & Laminar Flow HCB-130H / HCB-1600H


HCB-1300H / HCB-1600H

Flow Type

Horizontal

Voltage/Frequency

220/50/60; 115/60

Power(W)

350

Vibration Amplitude (UM)

2

Exhaust Filter Typical Efficiency

H13 HEPA, 99.99%@0.3um

Average Velocity (M/S)

0.2-0.4

Fluorescent Lamp Intensity(Lux)

≥1000

Exterior Dimesion (W*D*H) (mm)

1380*792*1960

Exterior Dimesion (W*D*H) (in)

54.4*31.2*77.2


Products
Contact Us
Submit a business inquiry about All Trusted’s medical equipemt.
Contact Us
Get In Touch with All Trusted
With over 15 years' experience in medical device market in China, we provide a total solution for new hospital setting-up, NGO's medical project and mobile clinic solution.

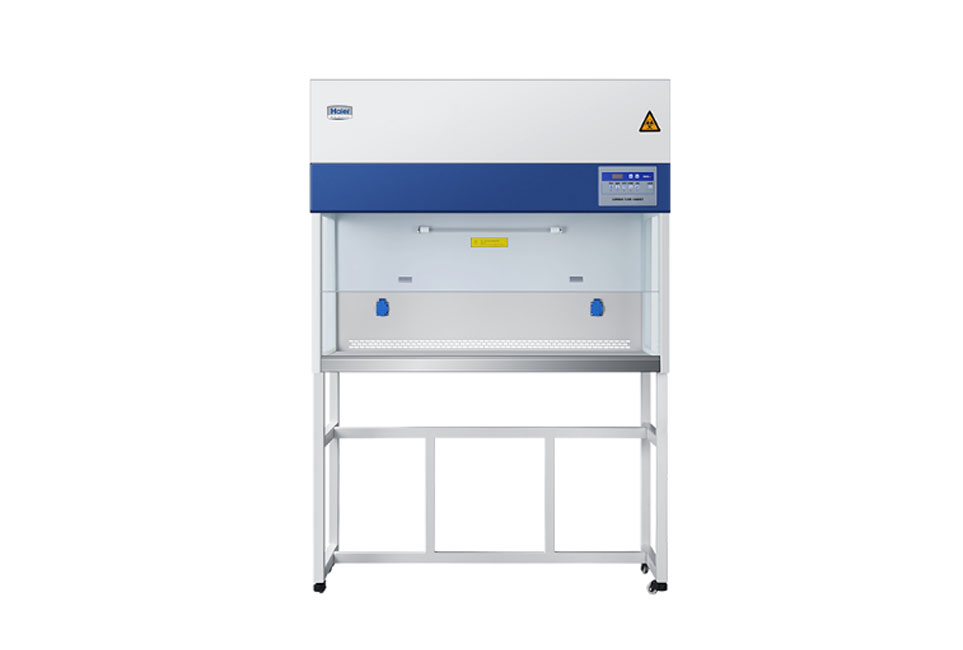

Related Clean Bench & Laminar Flow
