Constant speed 200 tests/ hour
Independent probe
Independent stirrer
Integrated full closed optical system, multi wavelength simultaneous detection
Reagent tray contains 80 reagent positions
Sample tray contains 40 sample positions
The reaction tray is single circle, with a total of 44 semi-permanent plastic cuvettes
4-stage, 2 times automatic washing system

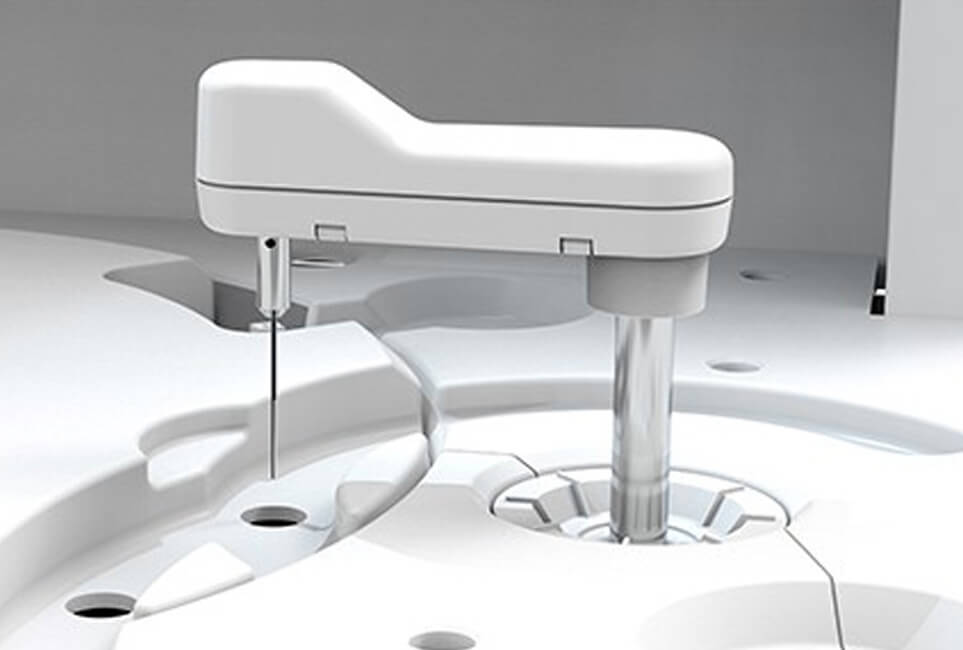

Multifunctional precision sampling probe
External & internal mirror polish, external & internal probe washing
Dedicated sampling probe equipped with sensitive liquid sensor, timely feedback of reagent & sample residuals
Collision protection, automatic probe depth adjusting

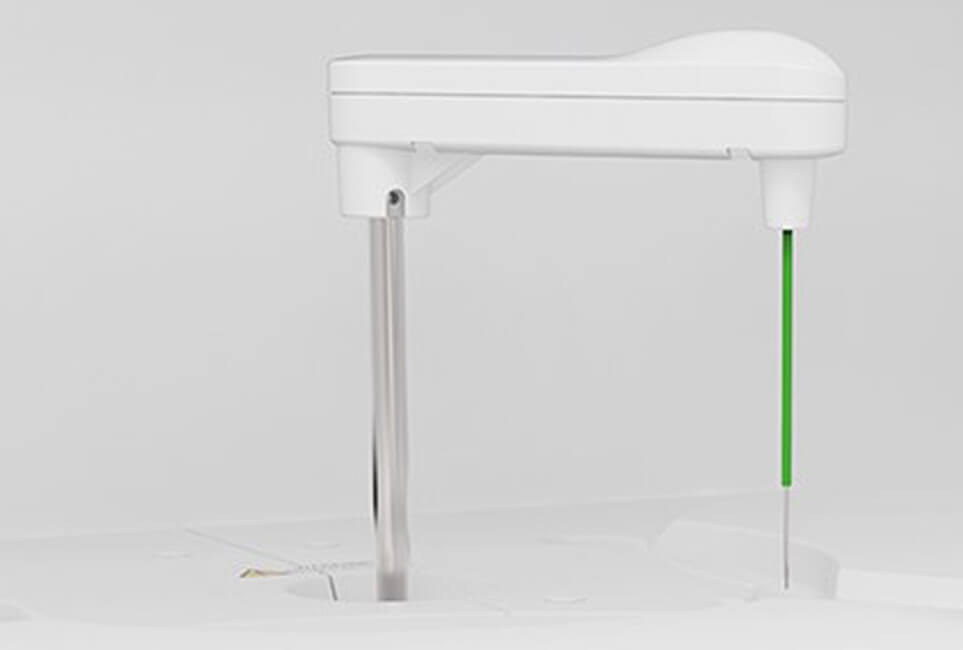

Excellent mixer design
Teflon coating mixer. No water dropping (reducing carry-over) Excellent mixing effect with standard mixing procedure
High precision ceramic syringe
Permanent ceramic piston
Accurate dispensing as low as 0.1 μL

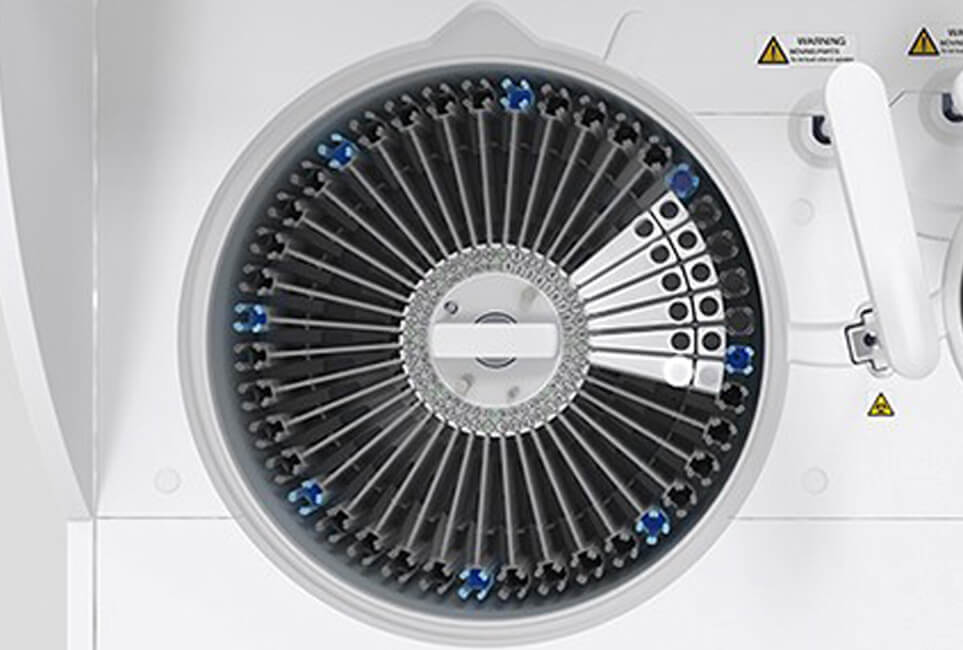

Reagent & sample tray
80 reagent positions，40 sample positions
Non-stop cooling system with peltier pad inside, 24 hours 2℃-14℃ Bar code reader(optional)

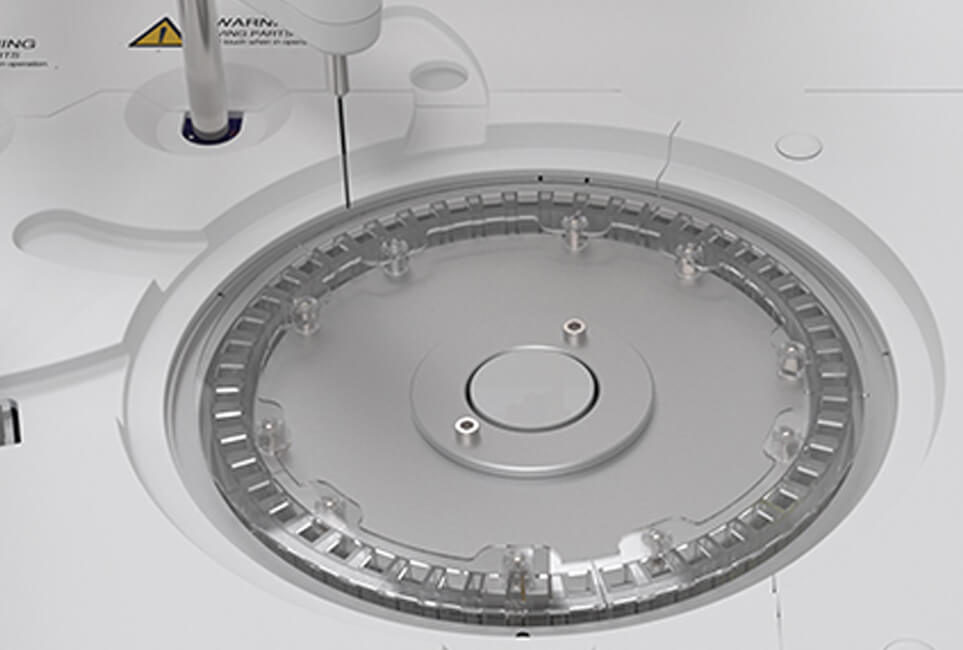

Reaction tray
44 reaction cuvettes
Reaction volume as low as 150 μL
Stable & accurate temperature(37 ± 0.1℃) for reaction

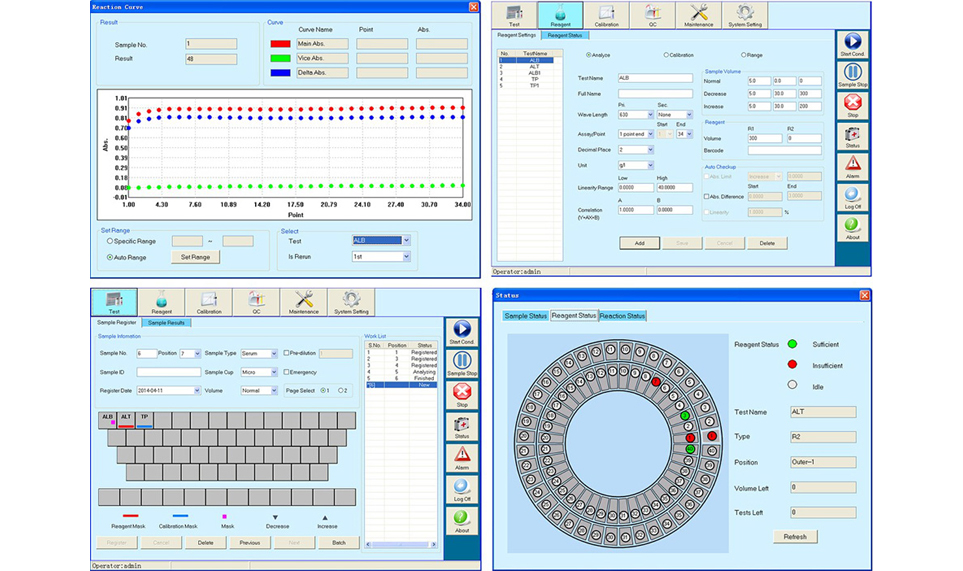

Advanced operating system
User friendly software interface simple, easy-to-operation Sample automatic dilution(decrease, increase, normal)
Reaction result automatic checking and warning, calibaration result automatic checking, warning alarm log
Linear & nonlinear calibration, Multi-points calibration up to 8 points Quality control apply to westgard, L-J plot, cumulative
General information | |
Machine type | Random access,open reagent & locked reagent (optional) |
Test speed | Constant 120 tests/hour |
Test principle | Colorimetric method, turbidimetry |
Test method | 1 point end, 2 point end, Fixed-Time, Kinetics |
Sample/Reagent unit | |
Sample/Reagent tray | 40 sample positions outside, support bar code reader, auto-dilution, STAT sample priority; 40 reagent positions in centre, 40 reagent positons inside, 40 reagent positions can support bar code reader, 24 hours uninterruptef refrigeration. |
Sample /reagent needle | 1 sample probe, liquid level detection,Vertical collision protection, inventory checking, clog detection(optional) |
Sample volume | 2-30μL, step by 0.1μL |
Reagent volume | 20-300μL, step by 1μL |
Mixing system | |
Mixer | Paddle-type mixing, effective reducing of carry-over |
Reaction unit | |
Reaction tray | 44 reaction cuvettes, new amorphous optical plastics reaction cuvettes, perfect transmittance. Diameter of reaction cuvette is 6mm. |
| Reaction volume | 150~330μL |
| Temperature | 37 ±0.1℃ |
| Cuvette washing | 2*4 automatic washing (without alkaline) |
| Wastewater treatment | High and low concentration split |
Optical system | |
Light source | Halogen lamp |
Light source lifetime | Average of 2000 hours |
Wavelength | 8 wavelengths: 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm, 700nm (4 more options) |
| Built-in Bar Code Reader (Optional) | Applicable to sample and reagent bar code,code system:Codabar, ITF (Interleaved Two of Five), code128, code39, UPC/EAN, Code93 |
| QC/Calibration | |
| Calibration modes | K factor, Two points linear, multi-pointslinear, Spline, Line graph, Exponential, Logit-Log3P, Logit-Log 4P, Logit-Log 5P |
| QC Rules | Westgard, L-J |
| Operation system Unit | |
| Operation system | Windows10, Windows11 professional edition |
| System connection | TCP/IP network connection |
| Other | |
| Power Supply | 100-240V,50/60Hz |
| Dimension | 745mm*540mm*530mm |
| Weight | 50Kg |
