Constant 120 test / hour with double reagent
80 reagent positions
Automatic liquid level sensing, anti-collision protection.
Integrated full closed optical system, multi wavelength simultaneous detection.
New amorphous optical plastics reaction cups, perfect transmittance.
Maintenance free semiconductor solid state refrigeration
Friendly surface and easy to operation

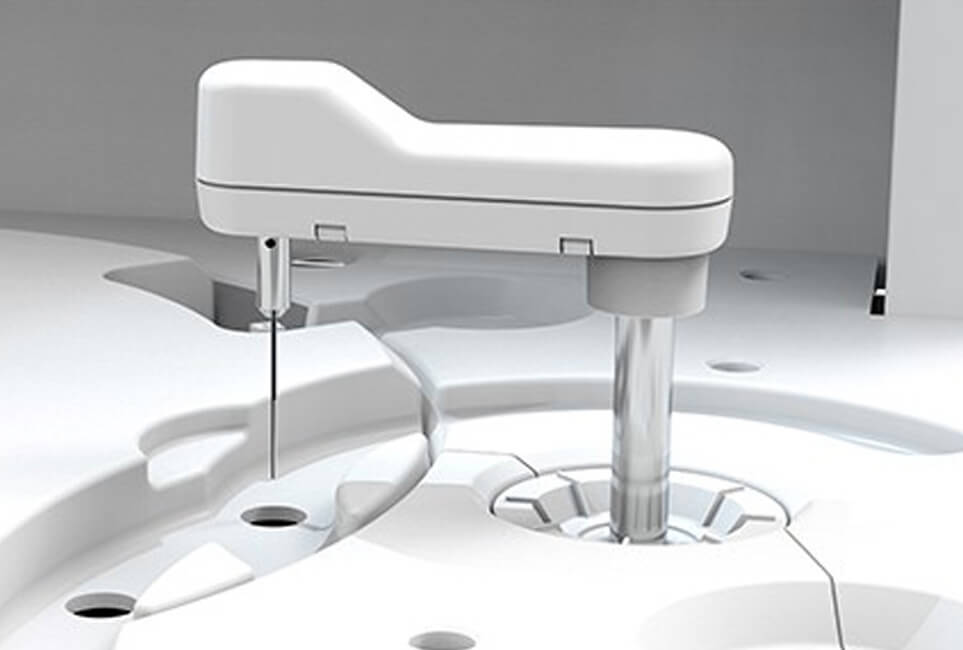

Multifunctional precision sampling probe
External & internal mirror polish, external & internal probe washing
Dedicated sampling probe equipped with sensitive liquid sensor, timely feedback of reagent & sample residuals
Collision protection, automatic probe depth adjusting

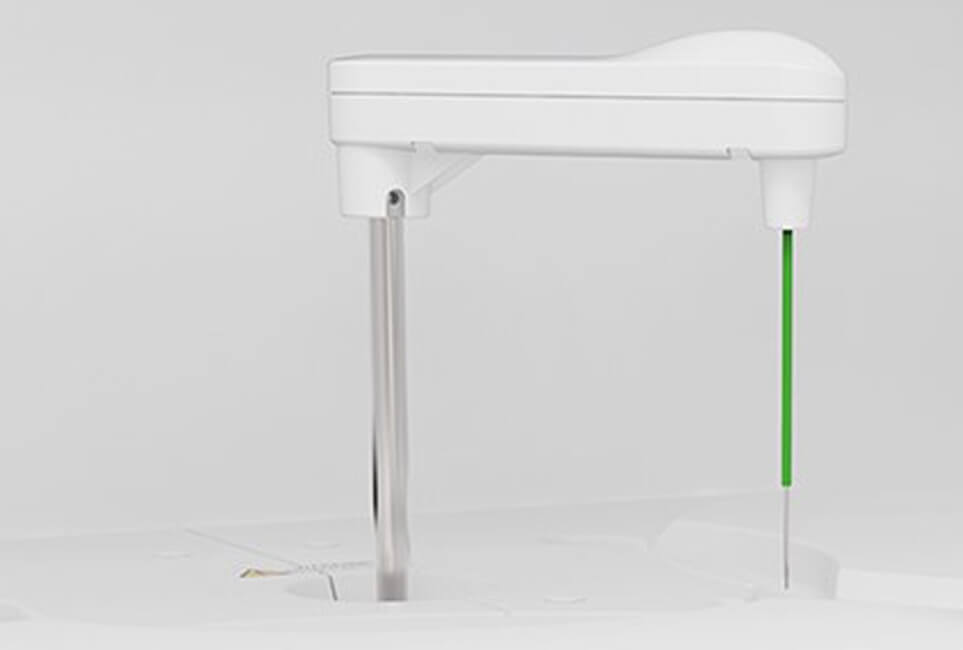

Excellent mixer design
Teflon coating mixer. No water dropping (reducing carry-over)
Excellent mixing effect with standard mixing procedure
High precision ceramic syringe
Permanent ceramic piston
Accurate dispensing as low as 0.1 μL

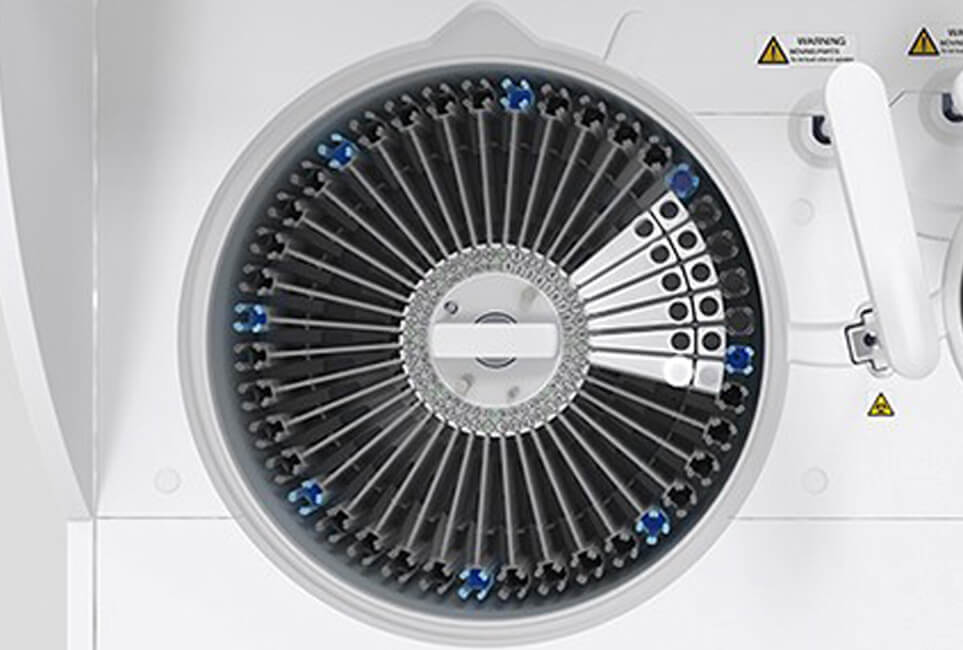

Reagent & sample tray
80 reagent positions (40 for R1, 40 for R2)
40 sample positions, micro cup & test tube can be used
Non-stop cooling system with peltier pad inside, 24 hours 2℃-14℃
Bar code reader(optional)

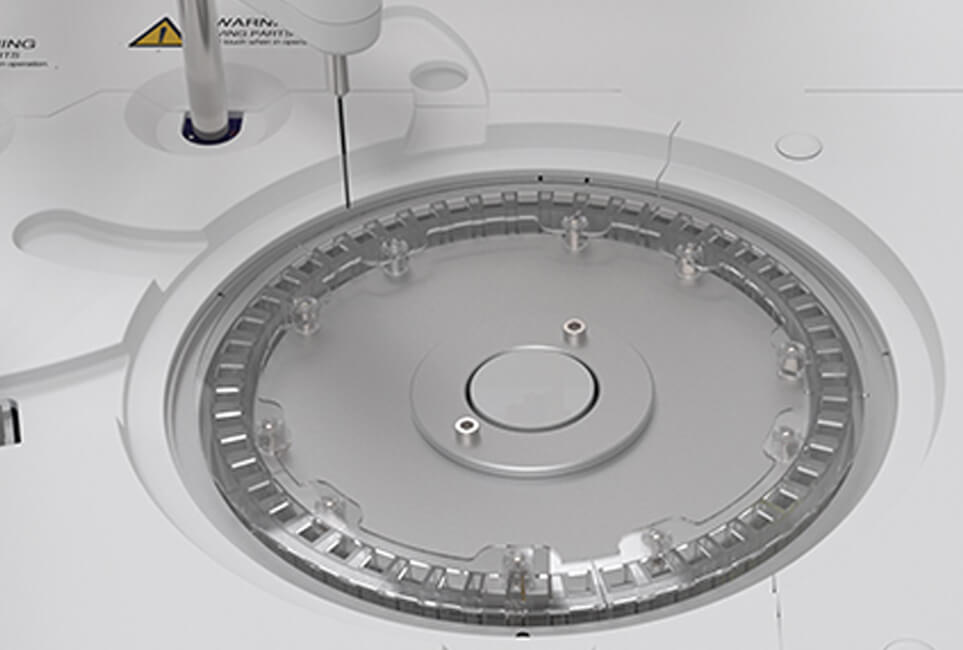

Reaction tray
50 disposable cuvettes
Reaction volume as low as 150 μL
Stable & accurate temperature(37±0.1℃) for reaction

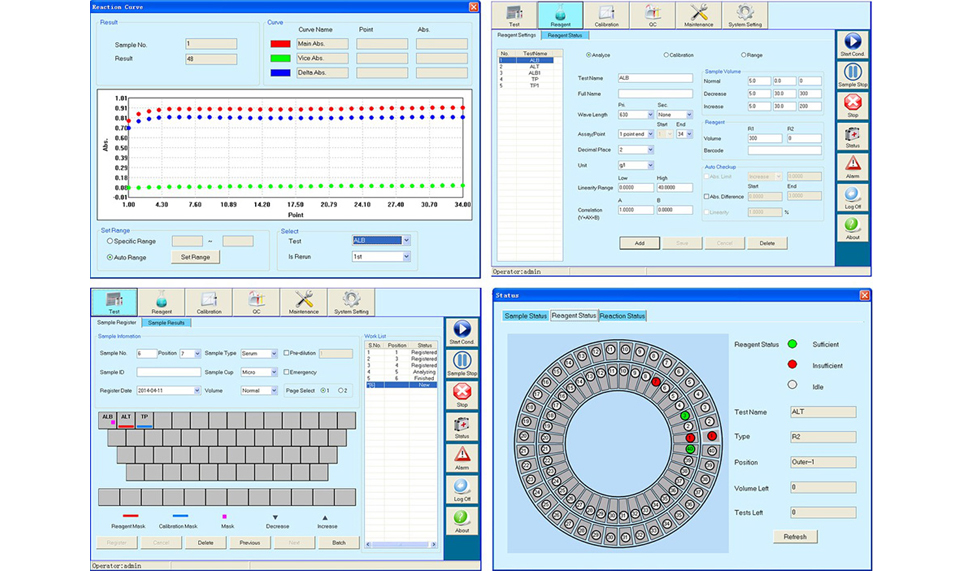

Advanced operating system
User friendly software interface simple, easy-to-operation
Sample automatic dilution(decrease, increase, normal)
Reaction result automatic checking and warning, calibration result automatic checking, warning alarm log
Linear & nonlinear calibration,Multi-points calibration up to 8 points
Quality control apply to westgard, L-J plot, cumulative
General information | |
Machine type | Random access,open reagent & locked reagent (optional) |
Test speed | Constant 120 tests/hour |
Test principle | Colorimetric method, turbidimetry |
Test method | End-point,Fixed-time,Kinetic |
Sample/Reagent unit | |
Sample/Reagent tray | 40 sample positions outside, support bar code reader, auto-dilution, STAT sample priority; 40 reagent positions in centre, 40 reagent positons inside, 40 reagent positions can support bar code reader, 24 hours uninterruptef refrigeration. |
Sample probe/ | |
Reagent needle | 1 sample probe, liquid surface detection, timely tracking for liquid volume, collision avoidance(Optional) |
Sample volume | 2-30μL, step by 0.1μL |
Reagent volume | 20-300μL, step by 1μL |
Mixing system | |
Mixer | 1 independent mixers |
Reaction unit | |
Reaction tray | 1 independent mixers |
| Reaction volume | 150-330μL |
| Temperature | 37 ±0.1℃ |
Optical system | |
Light source | Halogen lamp |
Light source lifetime | 2000 hours on average |
Wavelength | 8 wavelengths , 340nm , 405nm , 450nm , 505nm , 546nm , 578nm , 630nm , 700nm (4 more options) |
| Optical system | |
| Light source | Halogen lamp |
| Wavelength | 340nm; 405nm; 450nm; 505nm; 546nm; 578nm; 630nm; 700nm(4 more options) |
| Absorbance range | 0-4.0 Abs |
| Resolution | 0.0001 Abs |
| Built-in Bar Code Reader (Optional) | Applicable to sample and reagent bar code,code system:Codabar, ITF (Interleaved Two of Five), code128, code39, UPC/EAN, Code93 |
| QC/Calibration | |
| Calibration modes | K factor, Two points linear, multi-pointslinear, Spline, Line graph, Exponential, Logit-Log3P, Logit-Log 4P, Logit-Log 5P |
| QC Rules | Westgard, L-J |
| Operation system Unit | |
| Operation system | Windows10, Windows11 Pro |
| System connection | TCP/IP network connection |
| Other | |
| Power Supply | 100-240V,50/60Hz |
| Dimension | 745mm*540mm*530mm |
| Weight | 48Kg |
